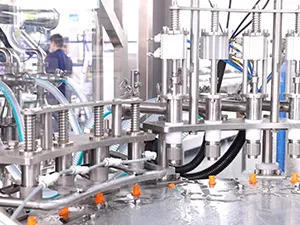

Spouted Pouch Filling and Capping Machine
The spouted pouch filling and capping machine is designed for premade spouted and shaped pouches that require higher filling volumes and precise capping control. It combines a modular servo-driven architecture with high-precision vision positioning, enabling accurate pouch alignment and stable handling throughout the process.
Multiple stations operate in parallel to complete pouch positioning, multi-material dosing, optional vacuum replacement, and torque-controlled cap tightening within a single, integrated workflow. Recipe management allows quick changeovers at the touch of a button, while built-in remote service interfaces support ongoing operation and maintenance. It is ideal for applications where packaging accuracy, flexibility, and production control are equally important.
Applications
Supported Pouch Types

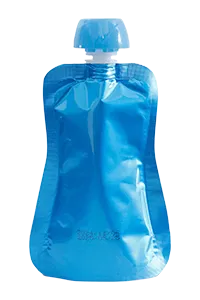

Shaped pouches

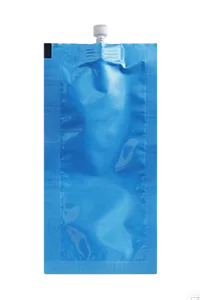

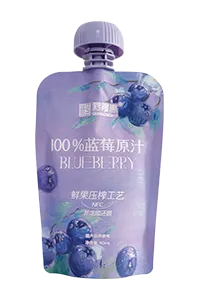

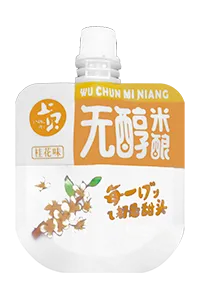

Spouted pouches
- Modular servo drive with vision positioning

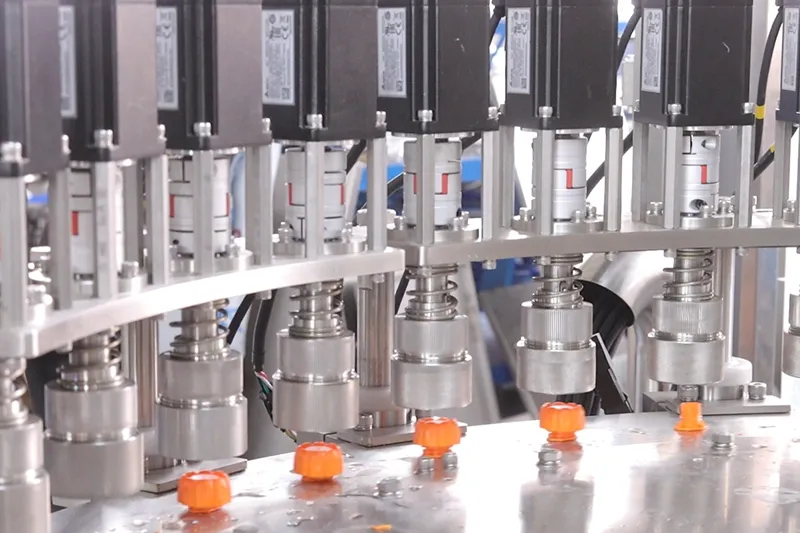

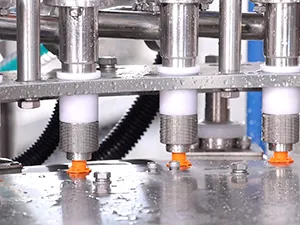

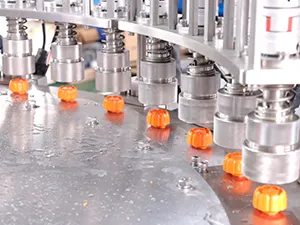

Four-station operation supported by high-precision vision guidance ensures filling accuracy within ±0.5 ml and cap torque control within ±2%. - Multi-material filling capability

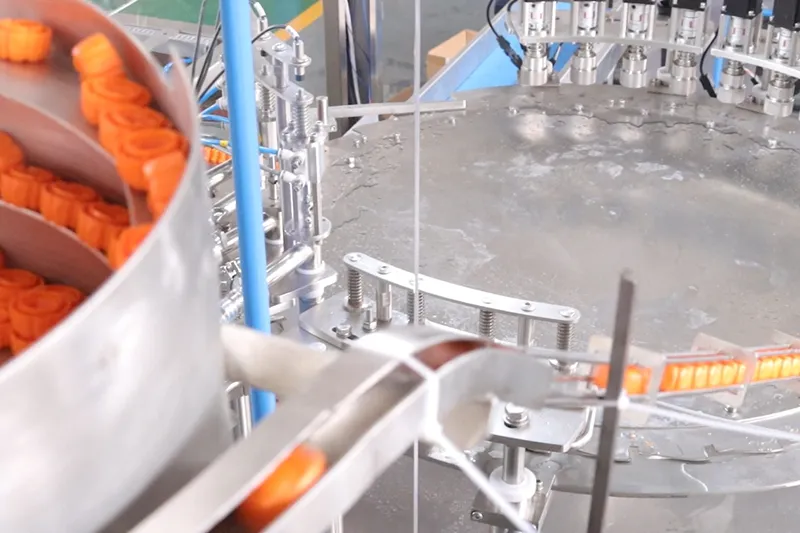

Supports liquid and solid–liquid mixed products. Adaptive capping modules accommodate different spout and cap specifications. - Recipe management and connectivity
Stores up to 200 production recipes for one-touch changeover. Industrial IoT interfaces enable real-time data collection and remote diagnostics. - Durable hygienic structure
Full stainless-steel frame with food-grade protective design ensures stable operation in demanding production environments.
| Model | ZGY-4000 |
| Max. pouch size (W × H) | 120mm×180mm |
| Maximum filling volume | 500ml |
| Packaging speed | ≤60 packs/min |
| Dimensions (L × W × H) | 2970mm×3300mm×2500mm |
| Net weight | 1500kg |
Zipper opening
Pouch hole punching
Sombrero hole (butterfly hole)
Round hole
Special-shape punching
Arc hole / Curved slot hole
Euro hole
Coding options
Hot stamp coding
Inkjet printing
Laser marking
Sealing patterns
Grid pattern
Dotted pattern
Plain/flat pattern
Vertical rib pattern
The ZGY series spouted pouch filling and capping machines share the same core functional architecture, with different models offering varied production speeds. Machine selection is matched to material characteristics and output requirements, and non-standard customization is available to suit specific production needs.
-
Factory overview -

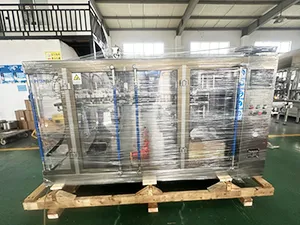

Shipping & delivery
