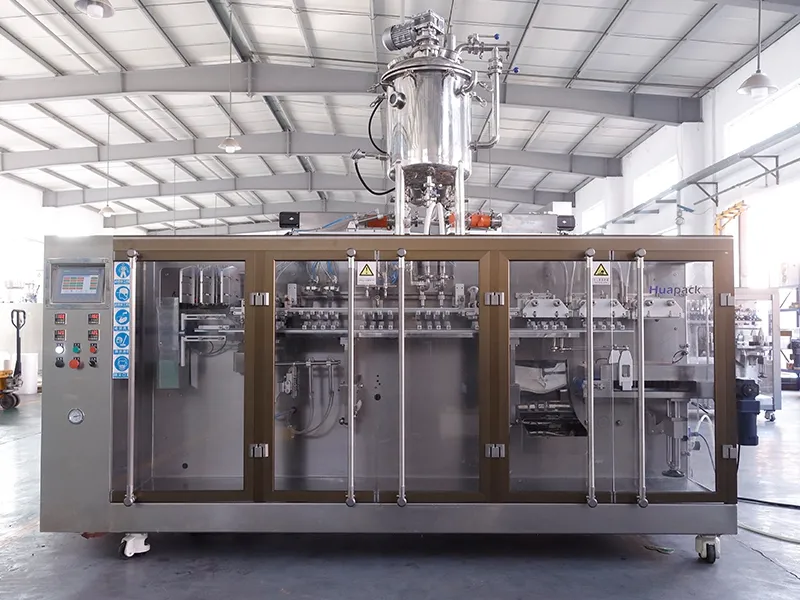

240DG

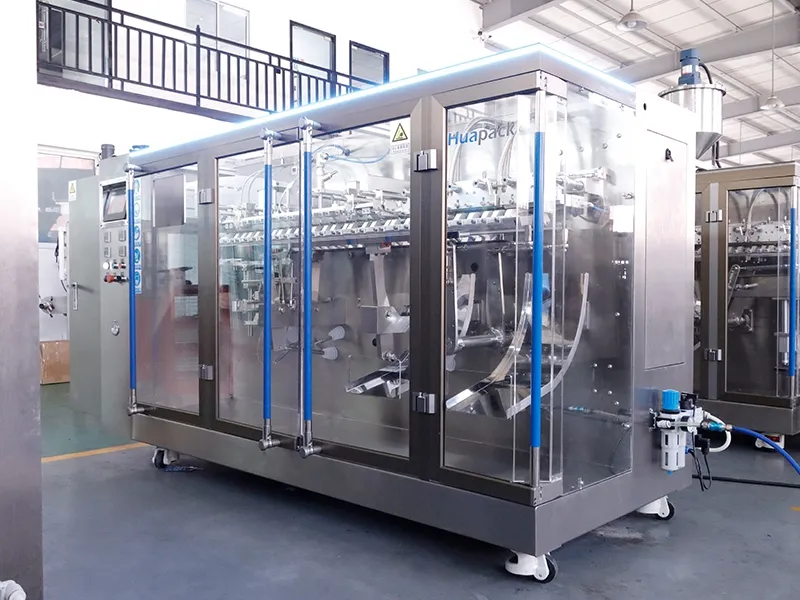

Premade Pouch Packaging Machine, 2-Nozzle Filling
These premade pouch packaging machines are suitable for small-volume products, with a maximum filling capacity of up to 300 ml. Thanks to their configuration, two filling nozzles work at the same time, so two pouches are filled in each cycle, which helps increase output while keeping the packaging process stable. These pouch packaging machines carry out pouch pick-up, opening, filling, and sealing in a smooth and well-coordinated process. They are widely used in cosmetics, food, pharmaceuticals, health supplements, and pet food, where small packs require precise filling and consistent, neat sealing.
Applications
Supported Pouch Types

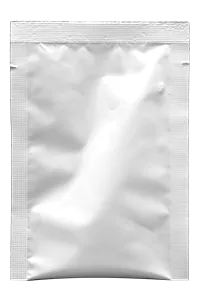

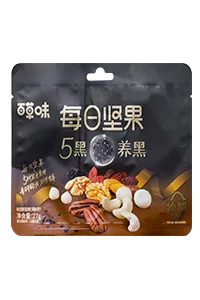

Flat pouches
Flat pouches

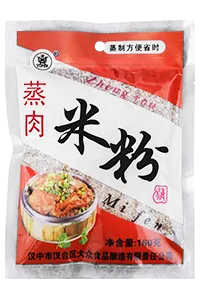

Stand-up pouches (doypack)/Zipper pouches
Stand-up pouches (doypack)/Zipper pouches
Shaped pouches
Spouted pouches
Applicable Products
Liquids, powders, granules, and viscous products.
Process Flow
- Dual pouch loading
- Dual pouch pick-up
- Dual pouch opening
- Dual air blowing (pouch opening air assist)
- Dual filling
- Dual pouch expanding
- Heat sealing
- Cooling sealing
- Finished pouch discharge
- Finished pouch conveying
Features
- These premade pouch packaging machines can package various pouch styles in a stable way, including three-side seal, four-side seal, stand-up pouches, and special-shaped pouches.
- Different filling systems can be selected depending on the product, so the same platform can be used for powders, granules, liquids, and viscous materials without changing the basic structure of the packaging machine.
- All main parts in contact with the product are made of 304 stainless steel, together with anodized aluminum components and food-grade plastics, meeting GMP requirements for food and pharmaceutical applications.
- The pouch packaging machine is equipped with PLC control to coordinate the motions of pouch pick-up, opening, filling, and sealing, so each step runs in sync and the whole process stays smooth and stable during continuous production.
- A pouch opening detection function is included, so filling only takes place when the pouch is correctly opened, reducing product waste. Sealing is also blocked when no product is filled, which helps avoid unnecessary use of packaging material.
- The two-nozzle configuration allows two pouches to be processed in each cycle, bringing an efficiency increase of more than 80% compared with single-nozzle equipment. The combined theoretical output can reach up to 90 pouches per minute.
- According to production needs, the pouch packaging machine can be equipped with additional systems such as coding machines, checkweighers, cartoners, case packers, labeling machines, and palletizers, so the line can be expanded into a more automated setup, with less manual handling.
Specifications
| Model | 240DG | |
| Packaging parameters | Min. pouch size (W × H) | 70×130mm |
| Max. pouch size (W × H) | 120×300mm | |
| Max. filling volume | 300ml | |
| Packing speed (pouches/min) | ≤90 | |
| Equipment specifications | Machine dimensions (L × W × H) | 2880mm×1100mm×1400mm |
| Total machine weight | 1500kg | |
| Operating conditions | Ambient temperature | -10℃-＋55℃ |
| Relative humidity (non-condensing) | <85% | |
| Power supply | AC380V, 50Hz | |
| Working air pressure | 0.6Mpa | |
| Air consumption | 560L/min | |
| Main motor power | 5.5Kw | |
Optional Functions
Zipper opening
Pouch hole punching
Sombrero hole (butterfly hole)
Round hole
Special-shape punching
Arc hole / Curved slot hole
Euro hole
Coding options
Hot stamp coding
Inkjet printing
Laser marking
Sealing patterns
Grid pattern
Dotted pattern
Plain/flat pattern
Vertical rib pattern
Details

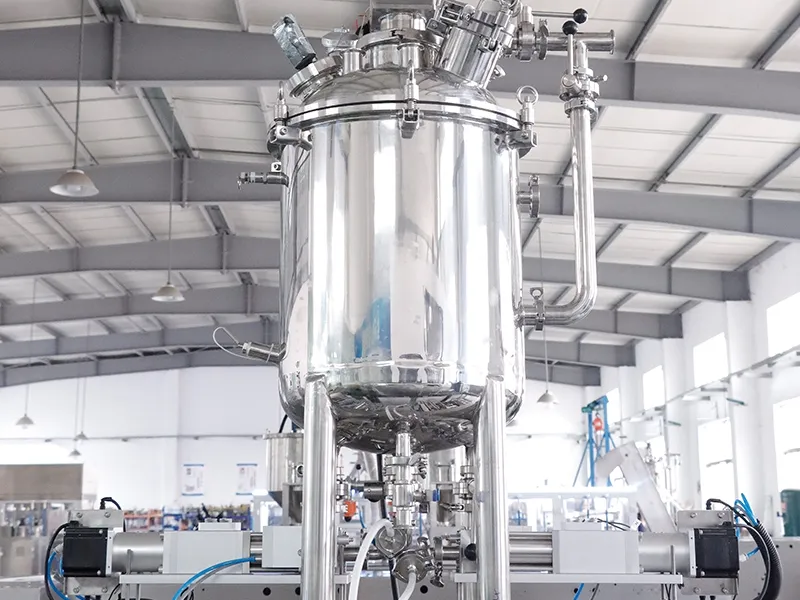

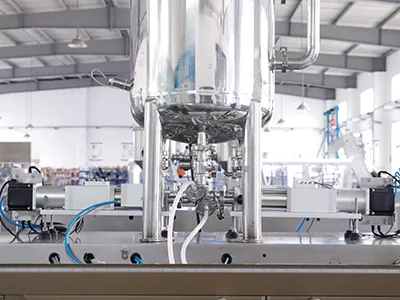

Product hopper

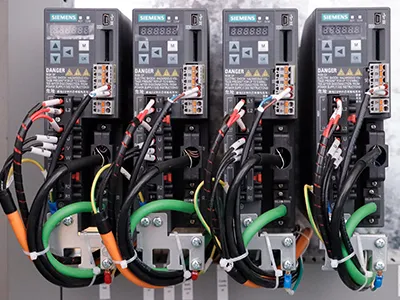

Electrical system

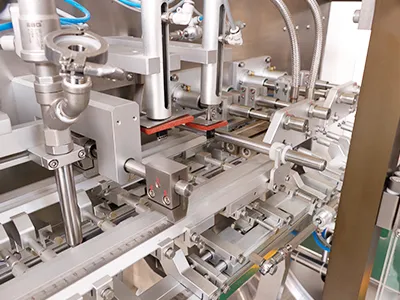

Pouch clamping system

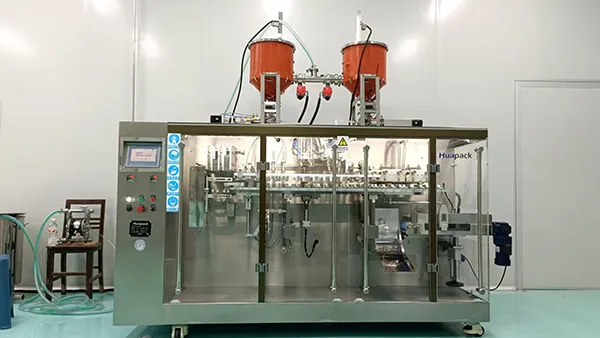

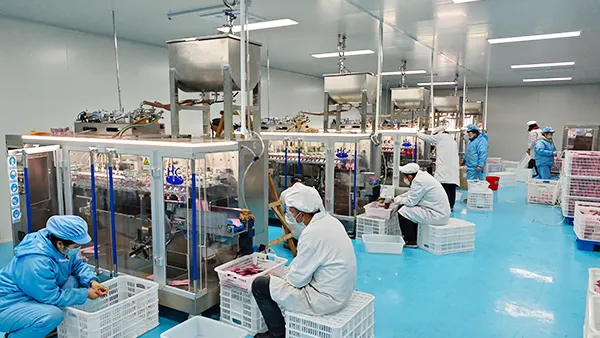

Customer Case Studies
-
Factory overview -
Shipping & delivery
As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
