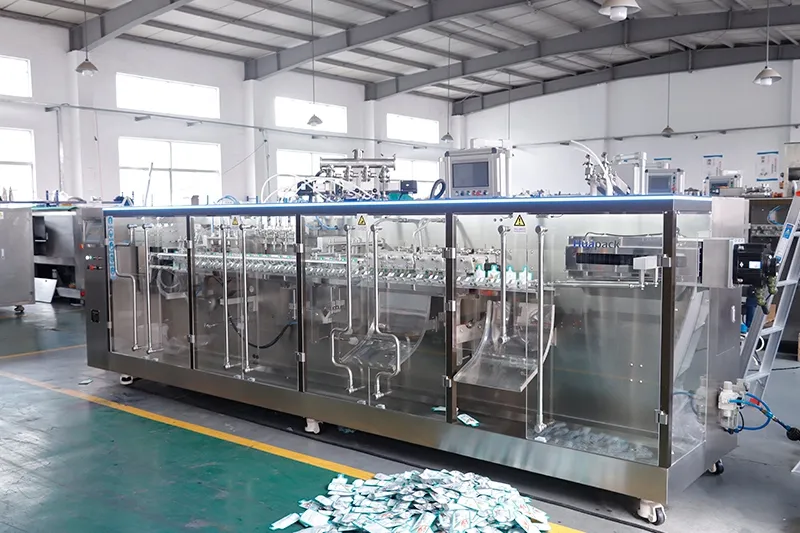

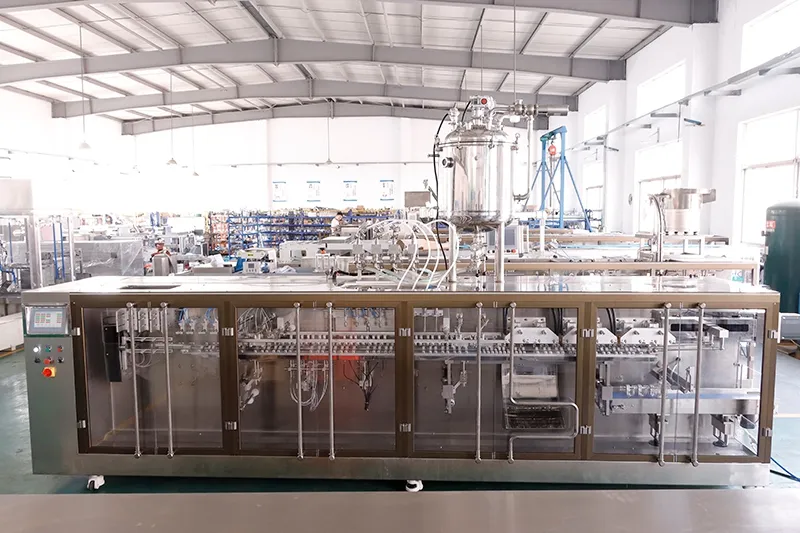

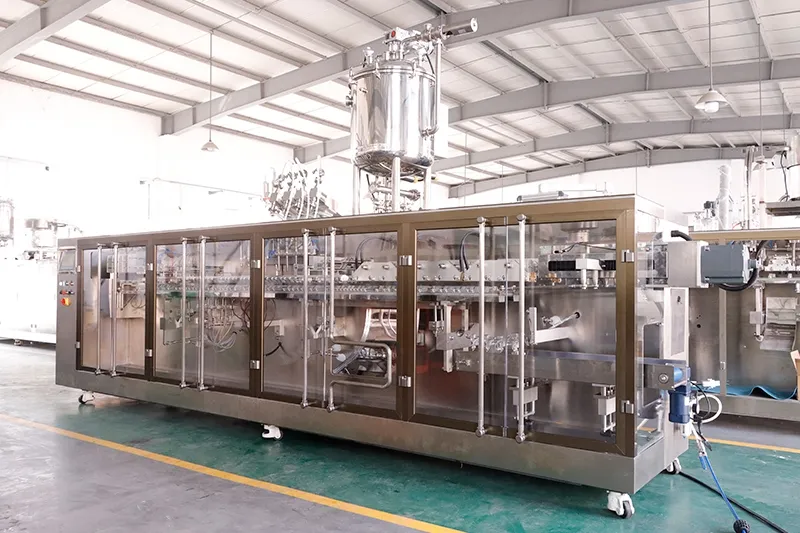

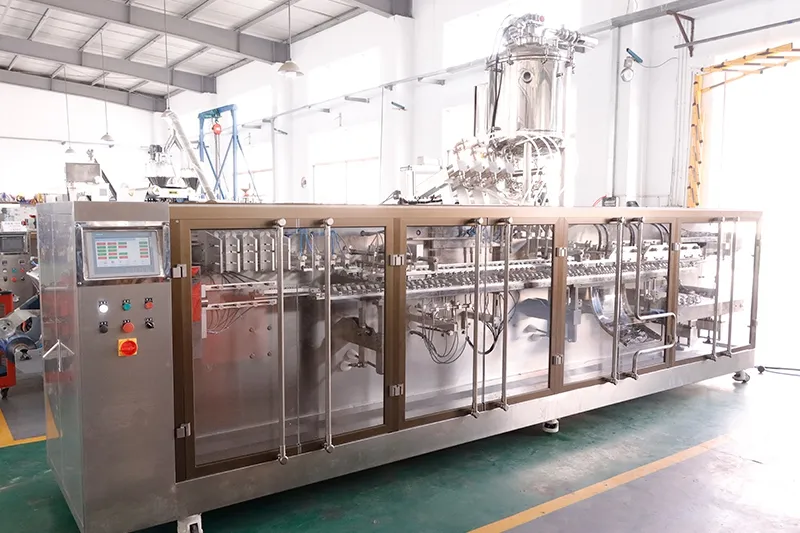

Premade Shaped Pouch Packaging Machine, 4-Nozzle Filling
The premade shaped pouch packaging machine is designed for high-speed, parallel pouch packaging using preformed shaped stand-up pouches. The system starts with finished pouches and uses a four-lane mechanical gripper unit to simultaneously pick up, open, and position four pouches in one cycle. Each pouch is processed in parallel through dosing, filling, and sealing. This synchronized structure allows shaped pouch packaging that is usually slower to be converted into stable, scalable production capacity. The result is high efficiency without compromising pouch appearance or accuracy.
It is suitable for manufacturers looking to scale distinctive pouch designs while maintaining consistent output and controlled operation.
Applications
Supported Pouch Types
Flat pouches
Flat pouches
Stand-up pouches (doypack)/Zipper pouches
Stand-up pouches (doypack)/Zipper pouches

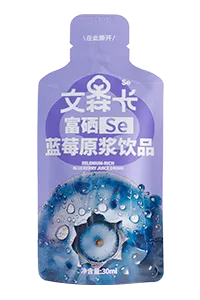

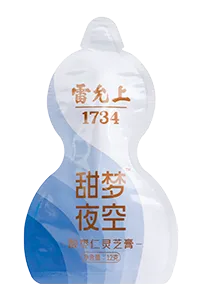

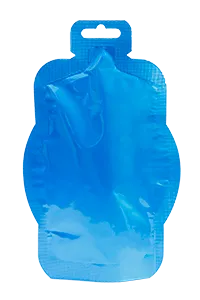

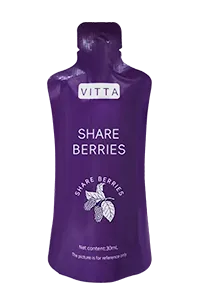

Shaped pouches
Spouted pouches
- Pouch loading
- Pouch picking
- Pouch opening
- Air blowing
- Filling
- Pouch spreading
- Heat sealing
- Cooling sealing
- Finished pouch
- Finished pouch conveyor
| Model | 400QG | |
| Packaging parameters | Min. pouch size (W × H) | 65×130mm |
| Max. pouch size (W × H) | 90×250mm | |
| Max. filling volume | 100ml | |
| Packing speed (pouches/min) | ≤180包/min | |
| Equipment specifications | Machine dimensions (L × W × H) | 4250mm×1100mm×1500mm |
| Total machine weight | 2500kg | |
| Operating conditions | Ambient temperature | -10℃-＋55℃ |
| Relative humidity (non-condensing) | <85% | |
| Power supply | AC380V, 50Hz | |
| Working air pressure | 0.6Mpa | |
| Air consumption | 600L/min | |
| Main motor power | 9.5Kw | |
Zipper opening
Pouch hole punching
Sombrero hole (butterfly hole)
Round hole
Special-shape punching
Arc hole / Curved slot hole
Euro hole
Coding options
Hot stamp coding
Inkjet printing
Laser marking
Sealing patterns
Grid pattern
Dotted pattern
Plain/flat pattern
Vertical rib pattern
A biotechnology company in Shandong, backed by the research of Academician Ling Pei, widely known in China for his work in hyaluronic acid, focuses on the development and production of health supplements and cosmetic products across the full value chain. In 2024, the company purchased a four-nozzle premade pouch packaging line from us for shaped pouches, and it has been running smoothly in their production, supporting stable and reliable output since its installation.
-
