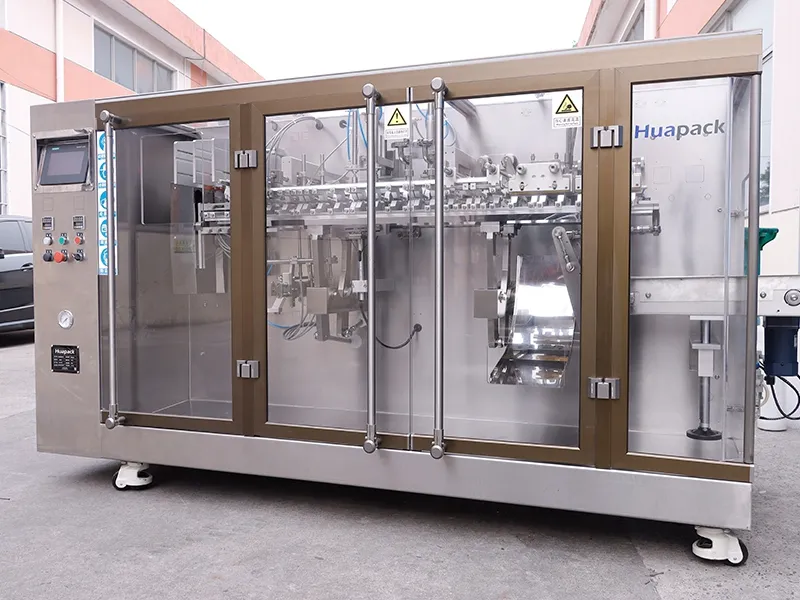

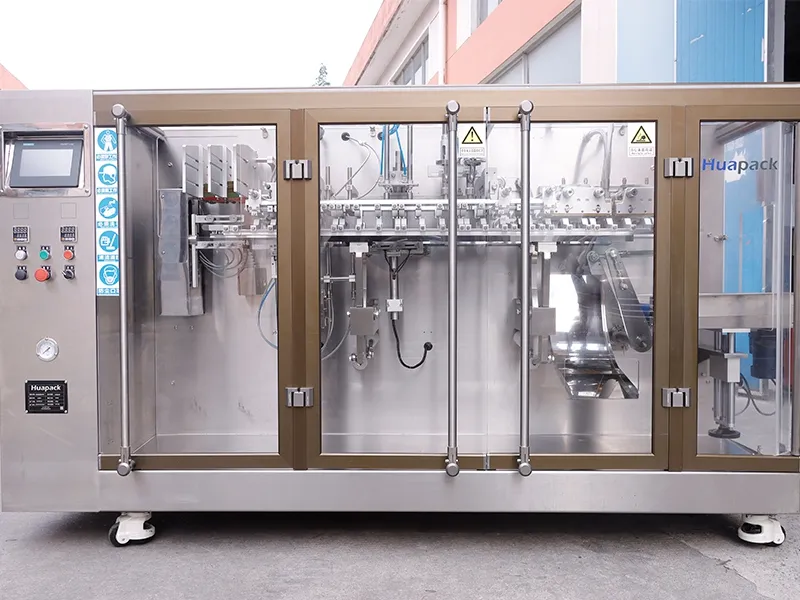

Premade Shaped Pouch Packaging Machine, 2-Nozzle Filling
The premade shaped pouch packaging machines feature a 2-nozzle filling configuration designed for efficient and stable pouch packaging. With an output range of 45 to 85 pouches per minute, these pouch packaging machines are ideal for stand-up pouch applications that require balanced speed and flexibility.

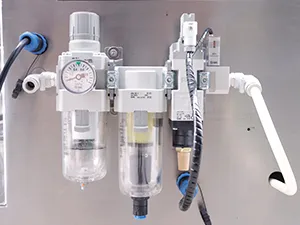

Single-pouch capacity supports volumes up to 200–250 ml, allowing them to handle a wide variety of products. Core components are selected from globally recognized brands such as Siemens, to ensure consistent performance and long-term operational reliability. They are engineered to operate under high- and low-temperature conditions, making them suitable for demanding production environments. These packaging systems are widely used in food, personal care, and pharmaceutical manufacturing, where packaging accuracy, hygiene control, and process stability are essential.
Applications
Supported Pouch Types
Flat pouches
Flat pouches

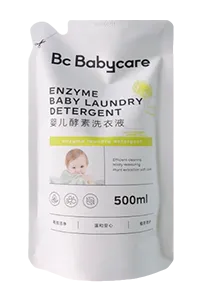

Stand-up pouches (doypack)/Zipper pouches
Stand-up pouches (doypack)/Zipper pouches

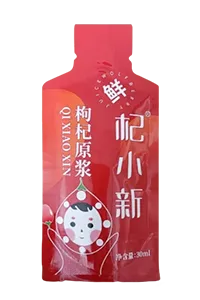

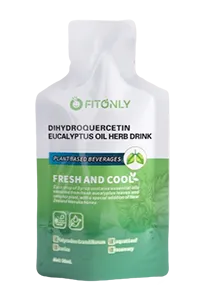

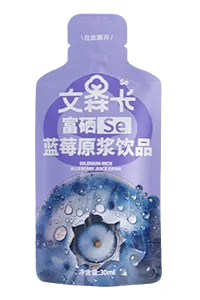

Shaped pouches
Spouted pouches
- Pouch loading
- Pouch pick-up
- Pouch opening
- Air blowing

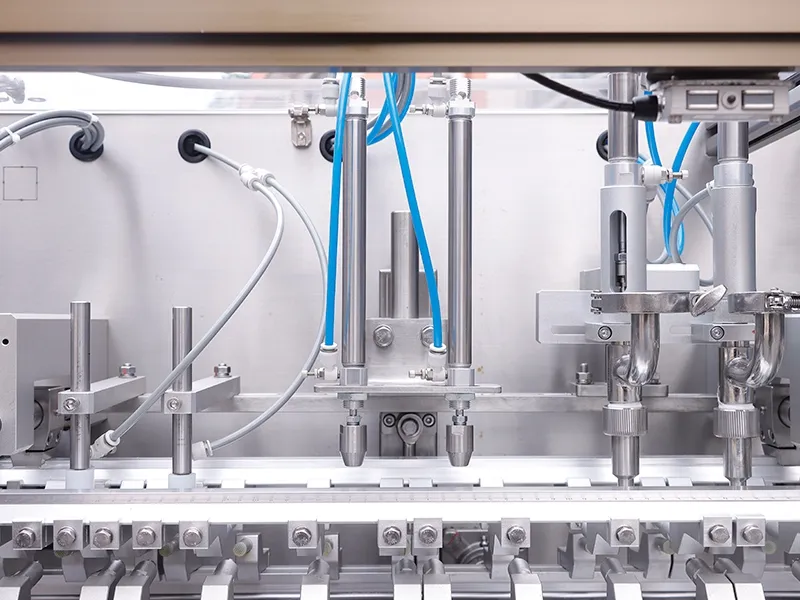

- Filling
- Pouch shaping
- Heat sealing
- Cooling sealing
- Finished pouch
- Finished pouch discharge conveyor
| Models | | | |
| Pouch parameters | Min. pouch size (W × H) | 60 mm ×130mm | 70 mm ×130mm |
| Max. pouch size (W × H) | 90 mm ×250mm | 105 mm ×300mm | |
| Max. filling volume (stand-up pouch) | 200ml | 250ml | |
| Packaging speed | ≤100 packs/min | ≤100 packs/min | |
| Equipment specifications | Dimensions (L × W × H) | 2400mm×1100mm×1400mm | 2550mm×1100mm×1400mm |
| Net weight | 900kg | 1100kg | |
| Operating conditions | Operating temperature | -10℃ to ＋55℃ | -10℃ to ＋55℃ |
| Relative humidity (non-condensing) | ≤ 85% | ≤ 85% | |
| Power supply | AC380V, 50Hz | AC380V, 50Hz | |
| Operating air pressure | 0.6Mpa | 0.6Mpa | |
| Air consumption | 560L/min | 560L/min | |
| Motor power | 3.5Kw | 4.5Kw | |
Zipper opening
Pouch hole punching
Sombrero hole (butterfly hole)
Round hole
Special-shape punching
Arc hole / Curved slot hole
Euro hole
Coding options
Hot stamp coding
Inkjet printing
Laser marking
Sealing patterns
Grid pattern
Dotted pattern
Plain/flat pattern
Vertical rib pattern

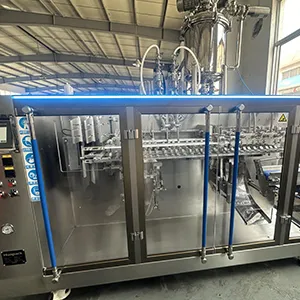

Zhejiang Biotechnology is a bio-tech enterprise focused on the research, production, and sales of seabuckthorn products. Known for its collaborative regional development model and commitment to sustainable practices, they introduced our premade shaped pouch packaging machine (2-nozzle filling) in 2024. The system has performed reliably in production and received positive operational feedback.
-
Factory overview -

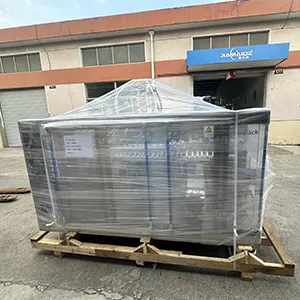

Shipping & delivery
