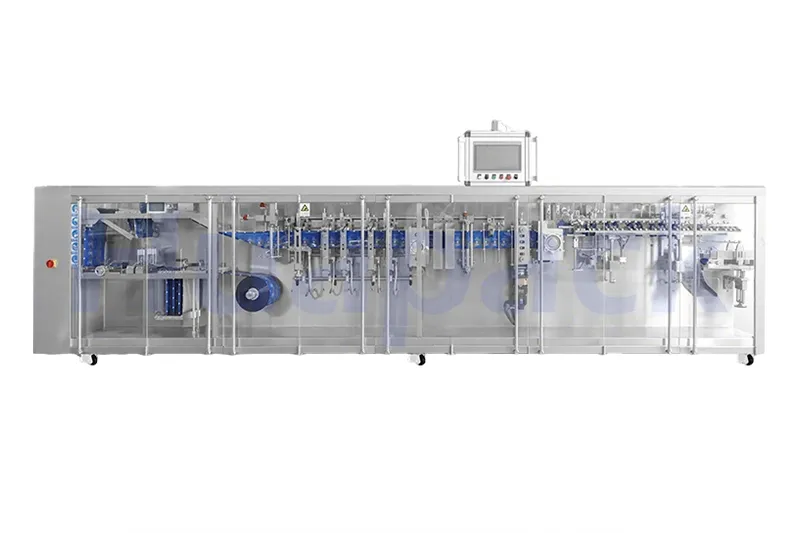

Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling
400SQY

Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling

The rollstock shaped pouch packaging machine is designed for high-output production using roll film to form shaped pouches directly on the line. With a production speed of up to 180 pouches per minute, it is suited for large-scale manufacturing environments, particularly in the personal care and daily chemical industries where efficiency and consistency are critical. It combines a high level of automation with precise motion and sealing control. Even at high speeds, pouch filling remains stable, sealing quality is consistent, and finished pouches maintain a clean, well-defined shape. The system is designed to support continuous operation while protecting product integrity and packaging appearance.

Request a Quote

Applications

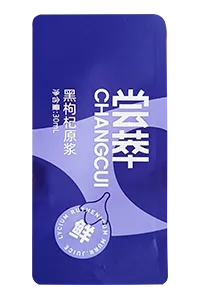

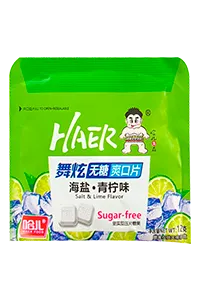

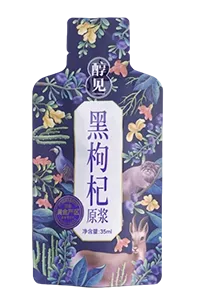

  • Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling
  • Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling
  • Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling
  • Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling

Supported Pouch Types

  • Shaped pouchesShaped pouches

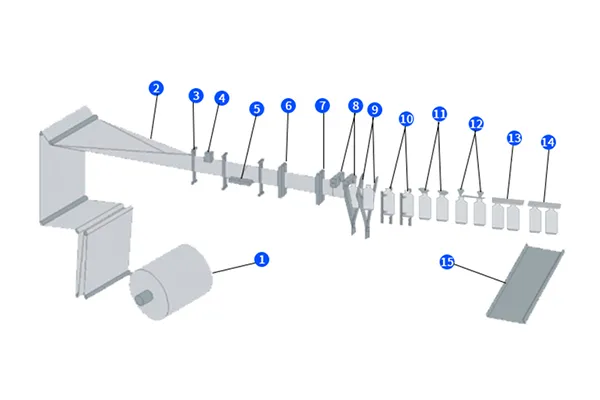

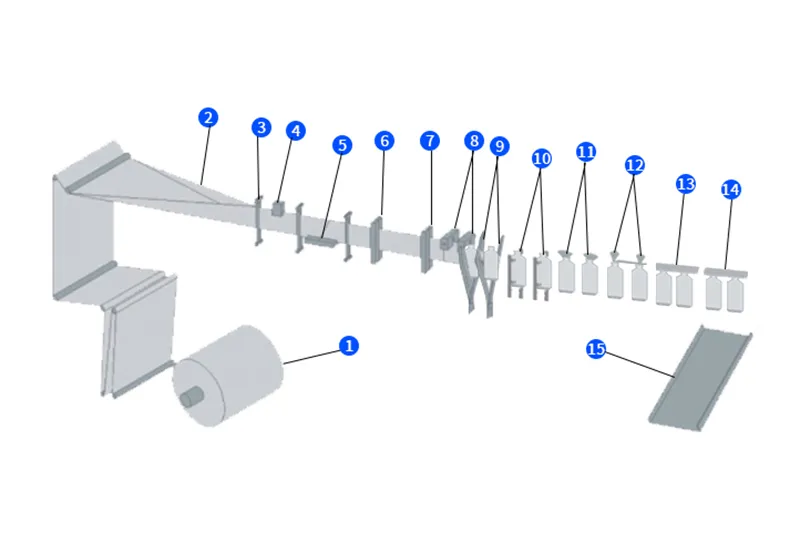

Process Flow
Process Flow
  • Film unwinding
  • Film edge alignment
  • Film forming
  • Easy-tear notch forming
  • Bottom sealing
  • First vertical sealing
  • Second vertical sealing
  • Die cutting
  • Cutting
  • Pouch opening
  • Air blowing
  • Filling
  • Heat sealing
  • Cooling sealing
  • Finished pouch conveying
Specifications
Model 400SQY
Pouch parameters Min. pouch size (W × H) 60 mm ×130mm
Max. pouch size (W × H) 90 mm ×200mm
Max. filling volume (stand-up pouch) 100ml
Packaging speed ≤200 packs/min
Equipment specifications Dimensions (L × W × H) 3475mm×1215mm×1600mm
Net weight 1800kg
Operating conditions Operating temperature -10℃ to ＋55℃
Relative humidity (non-condensing) ≤ 85%
Power supply AC380V, 50Hz
Operating air pressure 0.6Mpa
Air consumption 400L/min
Motor power 4.5Kw
Optional Functions

Zipper opening

  • Zipper opening
  • Zipper opening

Pouch hole punching

  • Sombrero hole (butterfly hole)Sombrero hole (butterfly hole)
  • Round holeRound hole
  • Special-shape punchingSpecial-shape punching
  • Arc hole / Curved slot holeArc hole / Curved slot hole
  • Euro holeEuro hole

Coding options

  • Hot stamp codingHot stamp coding
  • Inkjet printingInkjet printing
  • Laser markingLaser marking

Sealing patterns

  • Grid patternGrid pattern
  • Dotted patternDotted pattern
  • Plain/flat patternPlain/flat pattern
  • Vertical rib patternVertical rib pattern
Details

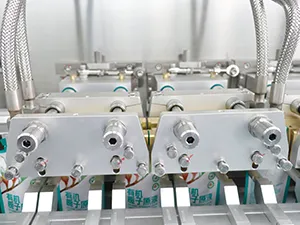

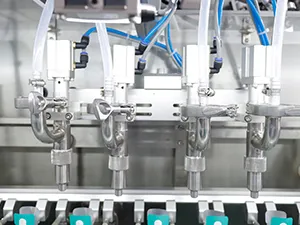

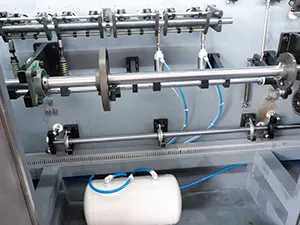

  • Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling
  • Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling
  • Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling
  • Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling
  • Customer Case Studies
  • Customer Case Studies
Customer Case Studies

Guizhou Biotechnology is a health supplement manufacturer. In 2024, they purchased this rollstock shaped pouch packaging machine from us and has been our long-term customer, having introduced multiple packaging machine models over time for different production needs.
  • Factory overviewFactory overview

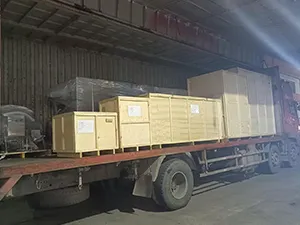

  • Shipping & deliveryShipping & delivery
As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
Shaped Pouch Packaging Machine

Roll film packaging uses lower-cost packaging materials. Over long-term operation, it can significantly reduce total packaging costs while supporting stable, high-volume production.
