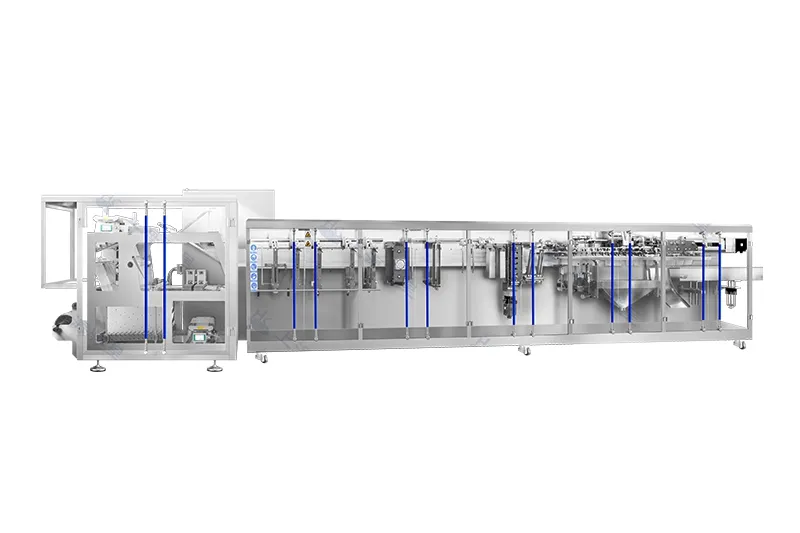

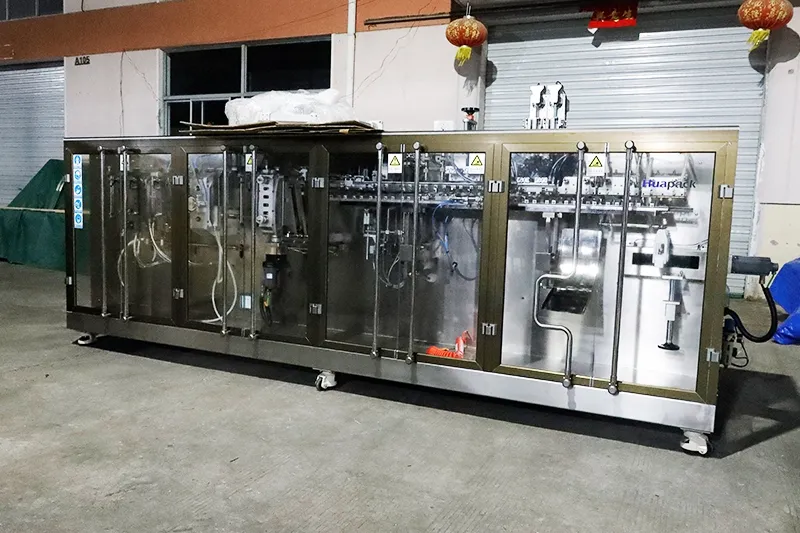

    Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling

    Horizontal form fill seal machine

    These dual-nozzle rollstock stand-up pouch machines combine high output with efficient use of rollstock film and precise process control. The 2-nozzle filling (dual-lane) layout allows higher production speeds while keeping material waste low, and the servo-driven system helps maintain stable forming, filling, and sealing for consistent stand-up pouch quality.

    Request a Quote

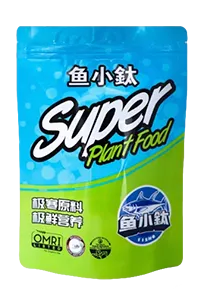

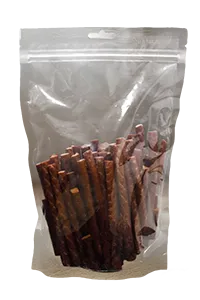

    Applications

    • Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling

    Supported Pouch Types

    • Stand-up pouches (doypack)/Zipper pouchesStand-up pouches (doypack)/Zipper pouches
    • Stand-up pouches (doypack)/Zipper pouchesStand-up pouches (doypack)/Zipper pouches

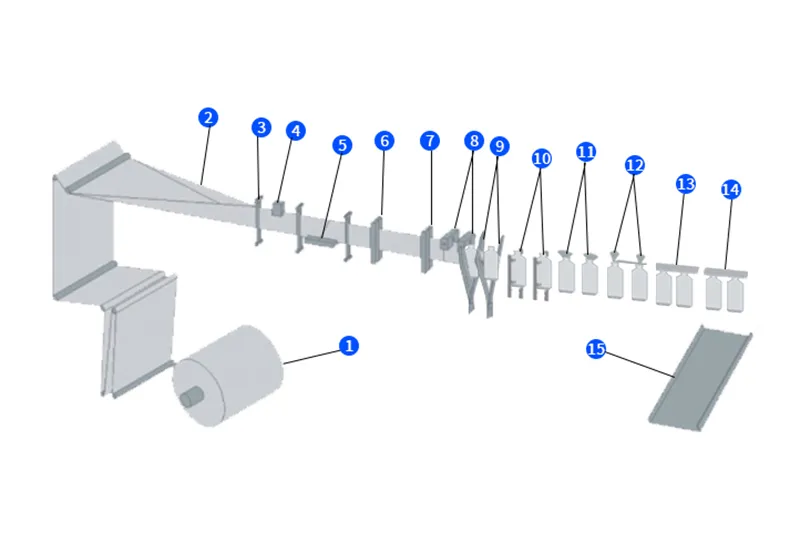

    Process Flow
    Process Flow
    • Film unwinding
    • Film edge alignment
    • Film forming
    • Easy-tear notch forming
    • Bottom sealing
    • First vertical sealing
    • Second vertical sealing
    • Die cutting
    • Cutting
    • Pouch opening
    • Air blowing
    • Filling
    • Heat sealing
    • Cooling sealing
    • Finished pouch conveying
    Features
    • The pouch packaging output can reach up to 120 pouches per minute, which is suitable to handle large-volume orders that would be impossible to manage with manual or semi-automatic lines.
    • A high level of automation connects pouch forming, dosing, filling, sealing, coding, and discharge into one continuous process, keeping production smooth and well-coordinated.
    • The main frame and main components are made with high-strength materials and precision machining, so the pouch packaging machine can keep running steadily even during long production shifts and high-load operation.
    Specifications
    Performance features Rollstock stand-up pouch parameters 180SD 240SD 280SD 330SD
    Pouch parameters Min. pouch size 70×110mm 90×125mm 90×125mm 70×140mm
    Max. pouch size 90×225mm 120×250mm 120×250mm 140×350mm
    Filling volume 300ml 500ml 500ml 800ml
    Packaging speed 60-120 60-120 60-120 80-120包/min
    Rollstock film thickness 60-180ųm 60-180ųm 60-180ųm 60-180ųm
    Max. rollstock film outer diameter 500mm 500mm 500mm 500mm
    Machine specifications Rollstock film core inner diameter 70-80mm 70-80mm 70-80mm 70-80mm
    Machine dimensions (L × W × H) 6900mm×970mm×1450mm 7200mm×970mm×1460mm 8500mm×1100mm×1460mm 9500mm×1100mm×1460mm
    Operating conditions Machine weight 2100kg 2500kg 2500kg 2500kg
    Air consumption 400L/min 400L/min 400L/min 400L/min
    Main drive power 8.8Kw 9.8Kw 9.8Kw 15.8Kw
    Optional Functions

    Zipper opening

    • Zipper opening
    • Zipper opening

    Pouch hole punching

    • Sombrero hole (butterfly hole)Sombrero hole (butterfly hole)
    • Round holeRound hole
    • Special-shape punchingSpecial-shape punching
    • Arc hole / Curved slot holeArc hole / Curved slot hole
    • Euro holeEuro hole

    Coding options

    • Hot stamp codingHot stamp coding
    • Inkjet printingInkjet printing
    • Laser markingLaser marking

    Sealing patterns

    • Grid patternGrid pattern
    • Dotted patternDotted pattern
    • Plain/flat patternPlain/flat pattern
    • Vertical rib patternVertical rib pattern
    • Customer Case Studies
    • Customer Case Studies
    Customer Case Studies

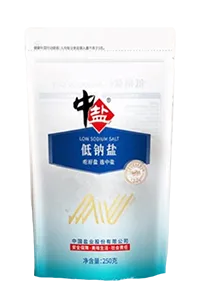

    China Salt, a state-owned enterprise approved by the State-owned Assets Supervision and Administration Commission and the only designated multi-variety salt producer in Anhui Province, selected the 280SD rollstock stand-up pouch machine in 2022. Since the rollstock pouch packaging machine was put into operation, it has been running smoothly, and the customer has given very positive feedback on its performance in daily production.

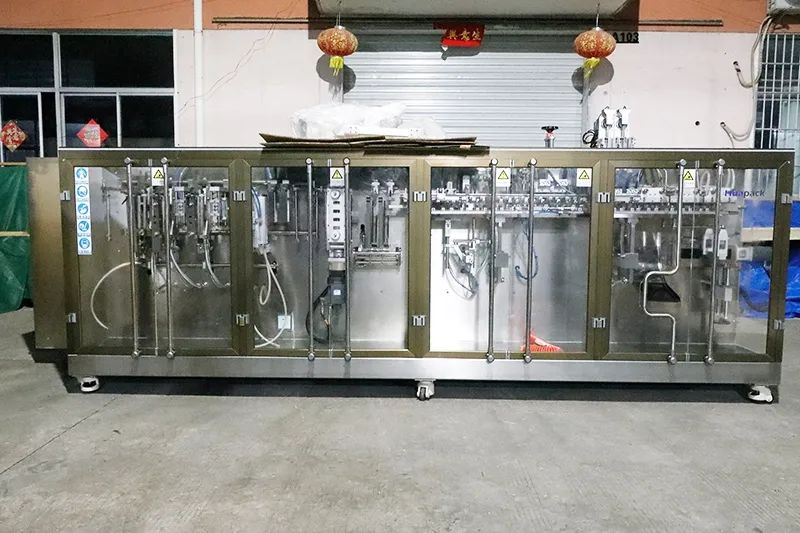

    • Factory overviewFactory overview
    • Shipping & deliveryShipping & delivery
    As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
    Rollstock Pouch Packaging Machine

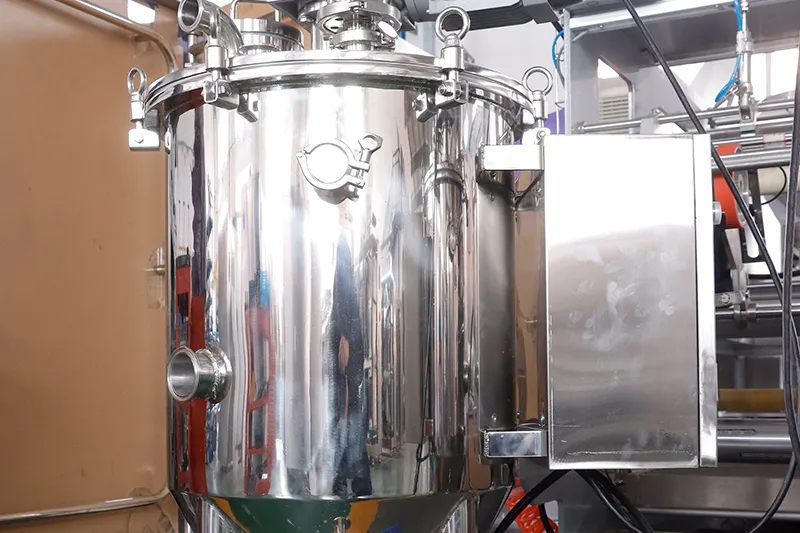

    When combined with liquid pump dosing, the stand-up pouch packaging system can fill liquid condiments smoothly and accurately, keeping the flow stable and ensuring clean, reliable sealing for everyday production.
