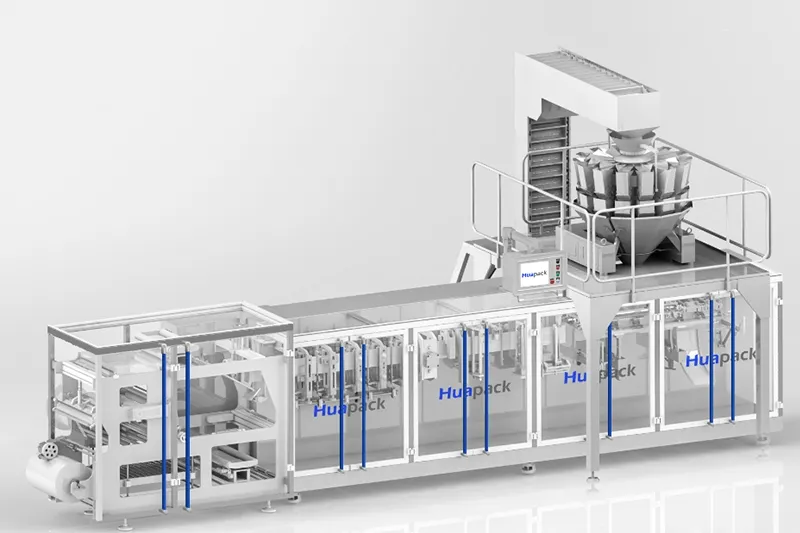

    Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling

    Horizontal form fill seal machine

    Rollstock zipper stand-up pouch packaging machines are used to produce self-standing pouches with a reclosable zipper through a fully automatic process. Made with a main frame and moving parts in 304 stainless steel to ensure easy cleaning, the sipper pouch packaging system uses servo control to handle film unwinding, bottom-gusset forming, accurate filling, and sealing, while precisely positioning and heat-welding the zipper strip onto the pouch opening, delivering finished, resealable stand-up packs in a stable and continuous high-speed operation.

    Request a Quote

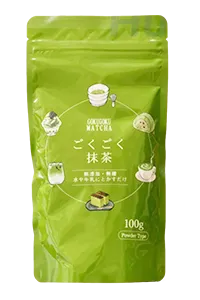

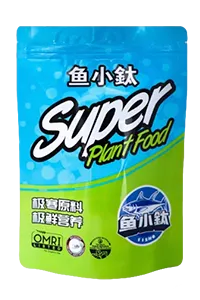

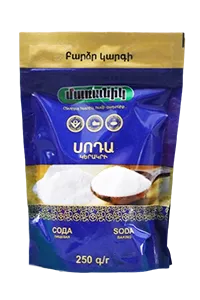

    Applications

    • Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling

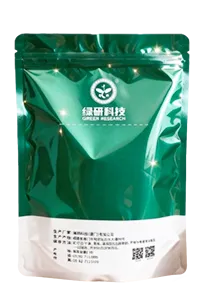

    Supported Pouch Types

    • Stand-up pouches (doypack)/Zipper pouchesStand-up pouches (doypack)/Zipper pouches
    • Stand-up pouches (doypack)/Zipper pouchesStand-up pouches (doypack)/Zipper pouches

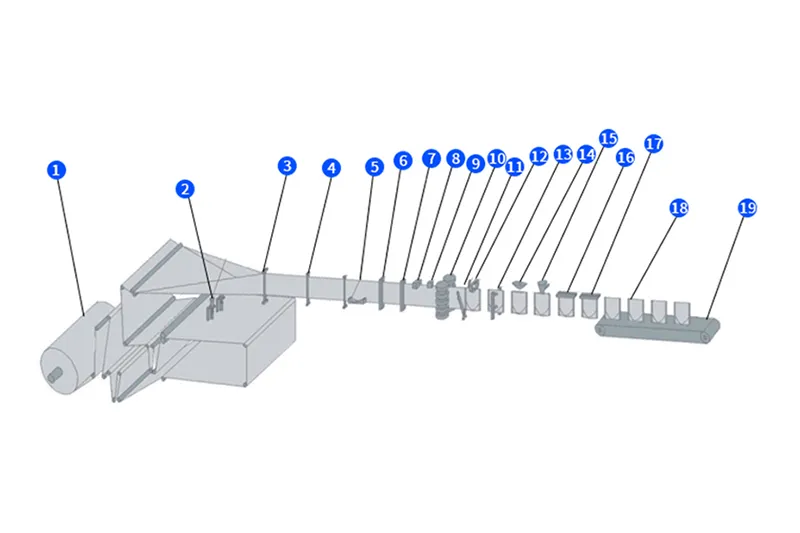

    Process Flow
    Process Flow
    • Film unwinding
    • Bottom hole punching
    • Film forming
    • Registration mark detection
    • Bottom sealing
    • First vertical sealing
    • Second vertical sealing
    • Easy-tear notch forming
    • Hole punching
    • Servo pouch pulling
    • Cutting
    • Pouch gripping
    • Pouch opening
    • Air blowing
    • Filling
    • Heat sealing
    • Cooling sealing
    • Finished pouch discharge
    • Finished pouch conveying
    Specifications
    Performance features Rollstock zipper stand-up pouch parameters 130SZ 180SZ 240SZ 280SZ
    Pouch parameters Min. pouch size 75x100mm 90×110mm 110×150mm 120x160mm
    Max. pouch size 130x225mm 180×225mm 240×320mm 280x300mm
    Filling volume (max.) 800ml 1000ml 2000ml 3000ml
    Packaging speed (pouches/min) ≤60 ≤60 ≤60 ≤60
    Machine specifications Machine dimensions (L × W × H) 6000mmx1200mmx1800mm 6700mm×1200mm×1800mm 7500mm×1200mm×1800mm 8000mmx1200mmx1800mm
    Operating conditions Machine weight 1800kg 2100kg 2400kg 3400kg
    Air consumption 400L/min 400L/min 400L/min 400L/min
    Main drive power 9Kw 9Kw 9.5Kw 9.5kw
    Optional Functions

    Zipper opening

    • Zipper opening
    • Zipper opening

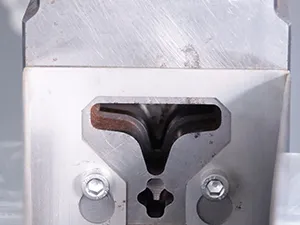

    Pouch hole punching

    • Sombrero hole (butterfly hole)Sombrero hole (butterfly hole)
    • Round holeRound hole
    • Special-shape punchingSpecial-shape punching
    • Arc hole / Curved slot holeArc hole / Curved slot hole
    • Euro holeEuro hole

    Coding options

    • Hot stamp codingHot stamp coding
    • Inkjet printingInkjet printing
    • Laser markingLaser marking

    Sealing patterns

    • Grid patternGrid pattern
    • Dotted patternDotted pattern
    • Plain/flat patternPlain/flat pattern
    • Vertical rib patternVertical rib pattern

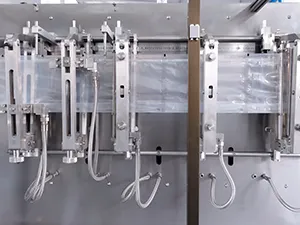

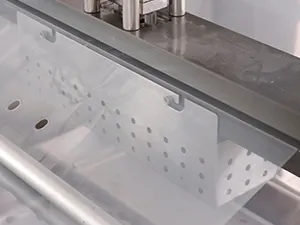

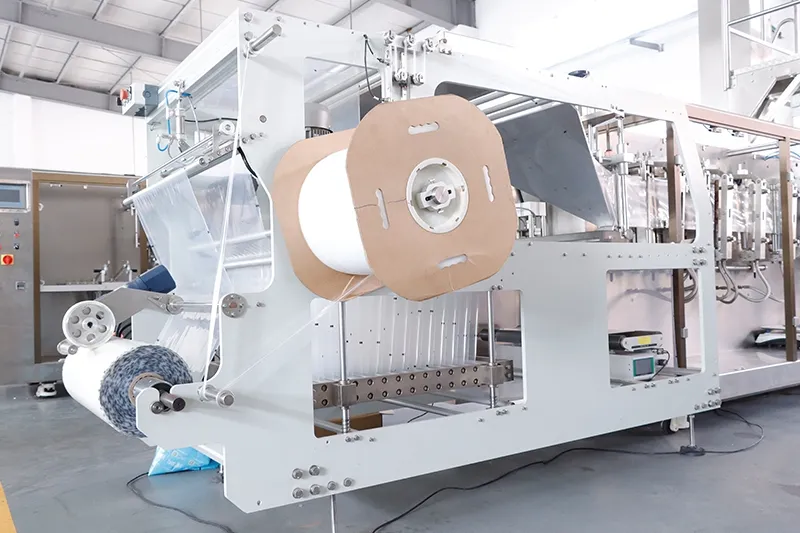

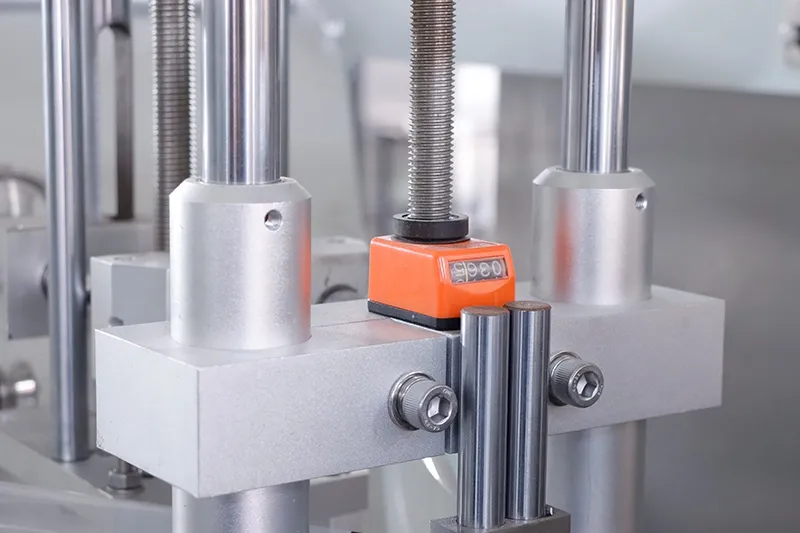

    Details
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Customer Case Studies
    • Customer Case Studies

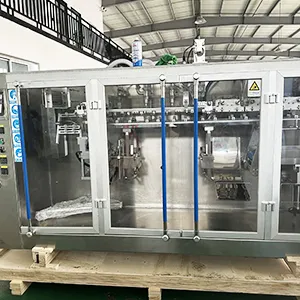

    Customer Case Studies

    In 2024, a well-known pet food producer in Russia chose the 240SZ rollstock zipper stand-up pouch packaging machine for packing their products. Since the pouch packaging equipment was put into operation, it has been running smoothly with no after-sales issues, and the customer has given very positive feedback on its stability and overall performance.
    • Factory overviewFactory overview

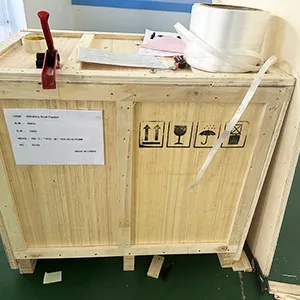

    • Shipping & deliveryShipping & delivery
    As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
    Rollstock Pouch Packaging Machine

    Heat sealing, often with double-sided heating, is commonly used for these products. It helps create strong, neat seals that keep stand-up pouches well closed and visually clean, making them suitable for nuts and other snack items.
