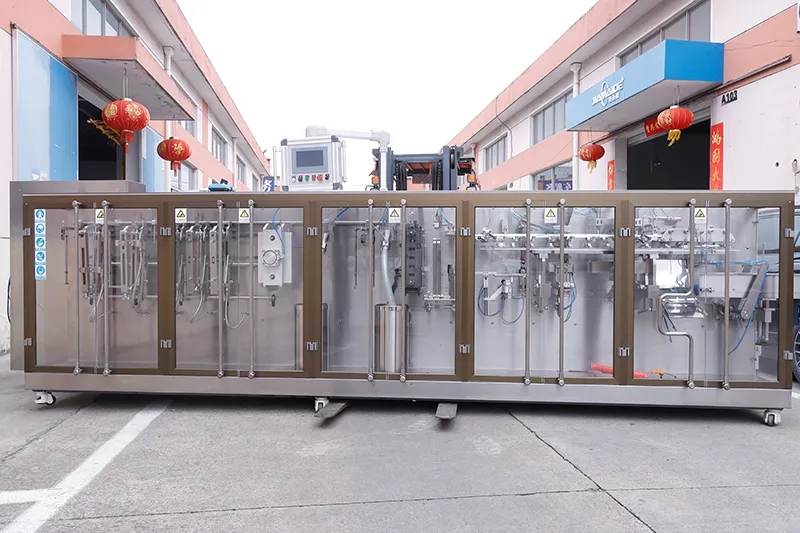

240SDZ/280SDZ/330SDZ

Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling

Horizontal form fill seal machine

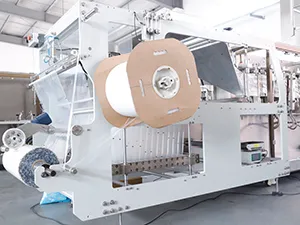

Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
  • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
  • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
  • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
  • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Roll film and continuous zipper strips are used as the main packaging materials, so there is no need to pre-order finished pouches. This helps reduce material costs and also simplifies storage and inventory management.
    • By changing the forming set and a few accessories, the rollstock zipper pouch packaging machine can handle different pouch sizes and formats, including three-side seal and back-seal structures, making it easier to adapt to different products.
    • Equipped with PLC and servo control to ensure precise handling of film pulling, filling accuracy, and sealing temperature and time, helping keep pouch quality consistent from run to run.
    • The reclosable zipper lets consumers open and close the pouch multiple times, protecting the product from moisture and leakage while keeping aroma and freshness. It also makes daily use and storage more convenient, adding value to the final package.
    • Even sealing pressure across the jaws creates strong, uniform seals. For powder and liquid products, a strong and even seal helps reduce the risk of leakage and keeps the pouches in good condition during transport and storage.
    Request a Quote

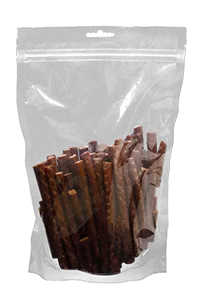

    Applications

    • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling

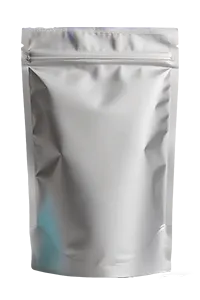

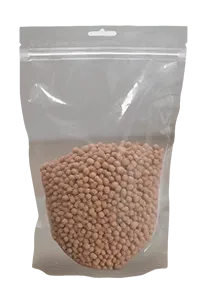

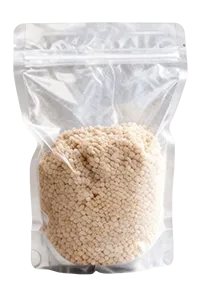

    Supported Pouch Types

    • Stand-up pouches (doypack)/Zipper pouchesStand-up pouches (doypack)/Zipper pouches
    • Stand-up pouches (doypack)/Zipper pouchesStand-up pouches (doypack)/Zipper pouches
    Process Flow
    Process Flow
    • Film unwinding
    • Bottom hole punching
    • Film forming
    • Registration mark detection
    • Bottom sealing
    • First vertical sealing
    • Second vertical sealing
    • Easy-tear notch forming
    • Hole punching
    • Servo pouch pulling
    • Cutting
    • Pouch gripping
    • Pouch opening
    • Air blowing

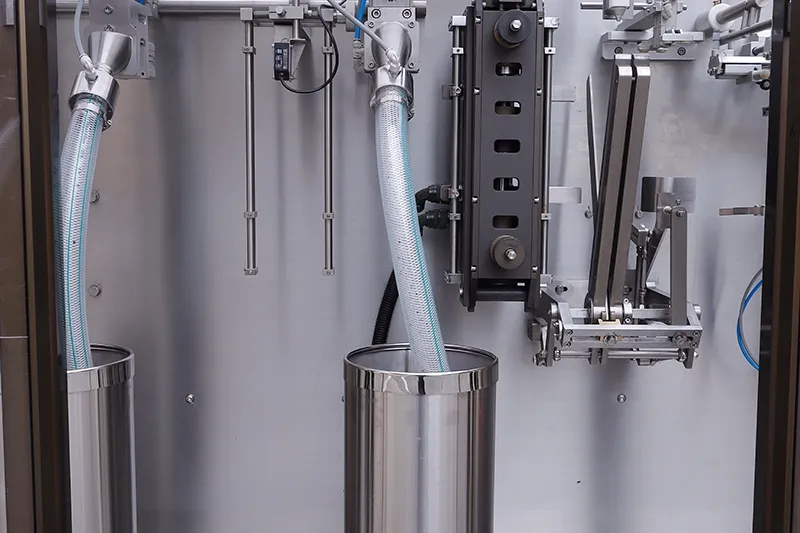

    • Filling
    • Heat sealing
    • Cooling sealing
    • Finished pouch discharge
    • Finished pouch conveying
    Specifications
    Performance features Rollstock flat pouch parameters 180SD/Z/P 240SD/Z/P 280SD/Z/P 330SD/Z/P
    Pouch parameters Min. pouch size 70x110mm 90x125mm 90x125mm 90x125mm
    Max. pouch size 90x225mm 120x250mm 140x250mm 165x250mm
    Filling volume 300ml 500ml 500ml 700ml
    Packaging speed 60-120 60-120 60-100 60-90
    Rollstock film thickness 70-150μ 70-150μ 70-150μ 70-150μ
    Max. rollstock film outer diameter 500mm 500mm 500mm 500mm
    Machine specifications Rollstock film core inner diameter 70-80mm 70-80mm 70-80mm 70-80mm
    Machine dimensions (L × W × H) 6900x970x1450 7200x970x1460 8500x1100x1460 9500x1100x1460
    Machine weight 2100kg 2500kg 2500kg 2500kg
    Operating conditions Operating temperature ﹣10℃-+50℃ ﹣10℃-+50℃ ﹣10℃-+50℃ ﹣10℃-+50℃
    Operating humidity Less than 85% Less than 85% Less than 85% Less than 85%
    Power supply AC380V, 50HZ AC380V, 50HZ AC380V, 50HZ AC380V, 50HZ
    Air pressure 0.6-0.7Mpa 0.6-0.7Mpa 0.6-0.7Mpa 0.6-0.7Mpa
    Air consumption 400L/min 400L/min 400L/min 400L/min
    Main drive power 8.8kw 9.8kw 12.8kw 15.8kw
    Optional Functions

    Zipper opening

    • Zipper opening
    • Zipper opening

    Pouch hole punching

    • Sombrero hole (butterfly hole)Sombrero hole (butterfly hole)
    • Round holeRound hole
    • Special-shape punchingSpecial-shape punching
    • Arc hole / Curved slot holeArc hole / Curved slot hole
    • Euro holeEuro hole

    Coding options

    • Hot stamp codingHot stamp coding
    • Inkjet printingInkjet printing
    • Laser markingLaser marking

    Sealing patterns

    • Grid patternGrid pattern
    • Dotted patternDotted pattern
    • Plain/flat patternPlain/flat pattern
    • Vertical rib patternVertical rib pattern

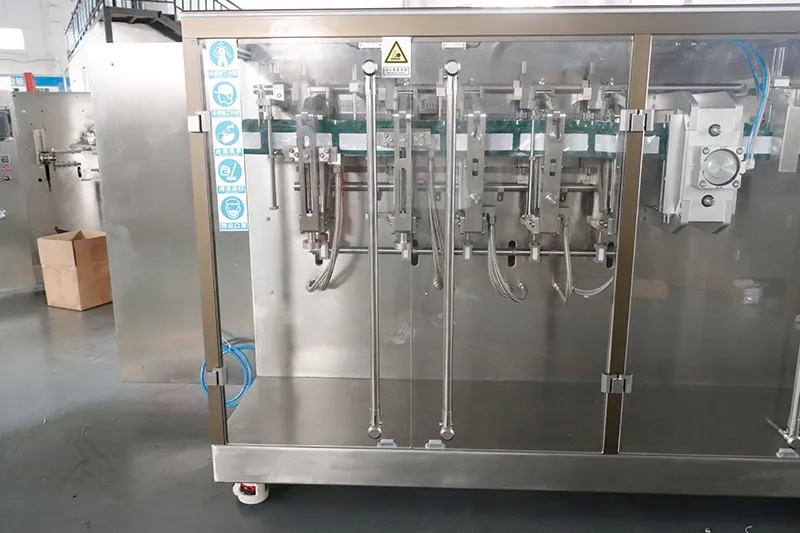

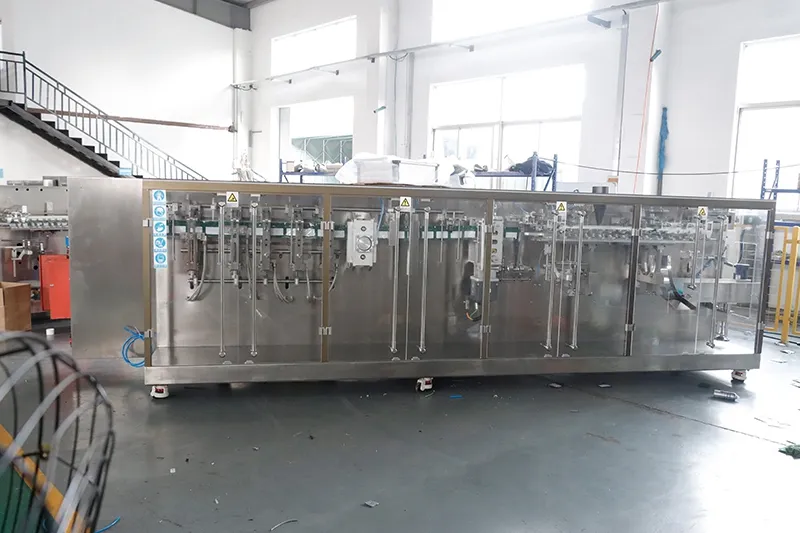

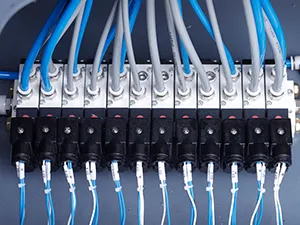

    Details
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Customer Case Studies
    • Customer Case Studies
    Customer Case Studies

    In 2024, a Russian company that specializes in pet food purchased the 240SZ rollstock zipper stand-up pouch packaging machine to pack their products. The pouch packaging machine has been running smoothly since then, with no after-sales issues, and the customer has been very satisfied with its performance.
    • Factory overviewFactory overview

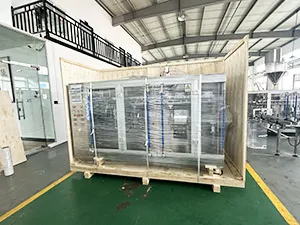

    • Shipping & deliveryShipping & delivery
    As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
    Rollstock Pouch Packaging Machine

    Thanks to their industrial-grade construction, the rollstock zipper stand-up pouch packaging equipment can work long hours with stable performance. Their robust design and low maintenance needs help keep production going smoothly across multiple shifts with minimal downtime.
