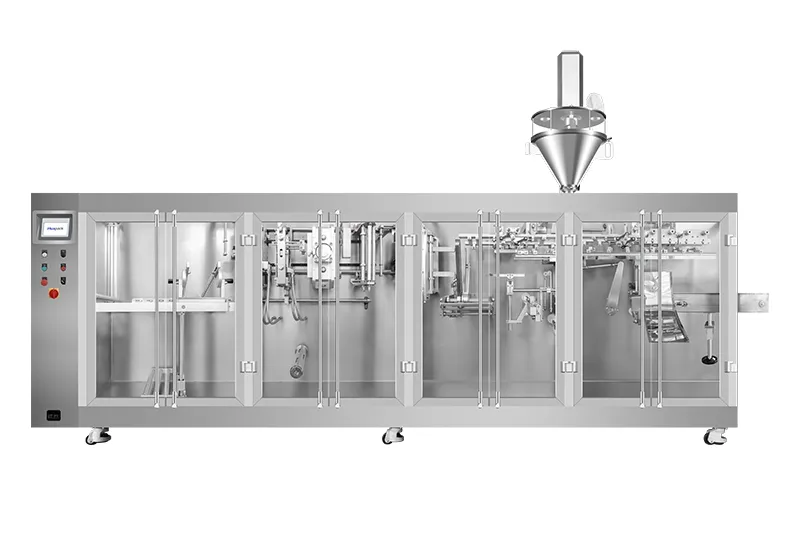

Flat Pouch HFFS Packaging Machine, 1-Nozzle Filling
Horizontal form fill seal machine

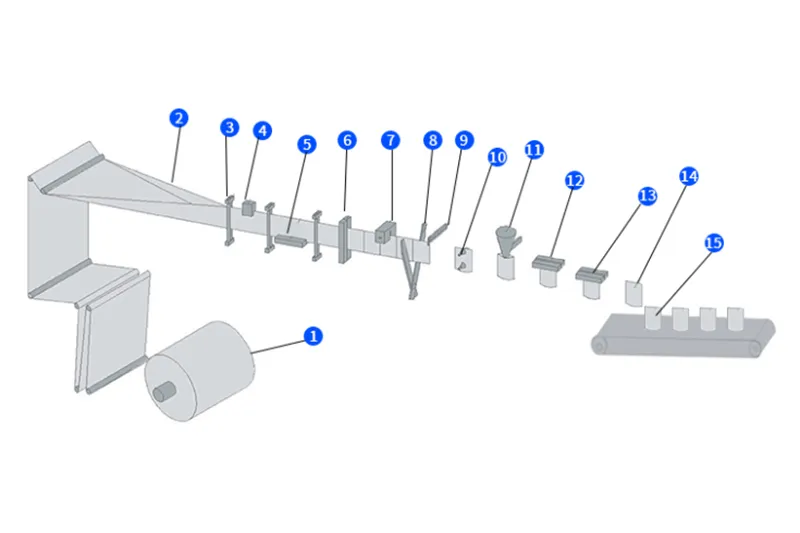

These HFFS flat pouch packaging lines work with rollstock film and handle the full process in one continuous flow, including pouch forming, dosing, cutting, opening, filling, sealing, and weight control. The mechanical structure and control system work together so the packaging machine runs smoothly without frequent stops, keeping movements well synchronized and allowing production to stay steady at around 40 pouches per minute. These rollstock flat pouch packaging system are suitable for small-volume products such as pharmaceutical powders and grains, as producers need a line that can run steadily, handle large quantities, and keep packaging costs under control.
Applications
Supported Pouch Types

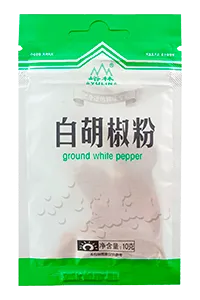

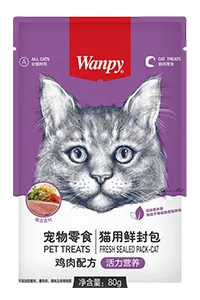

Flat pouches
Flat pouches
| Performance features | Rollstock flat pouch parameters | | | |
| Pouch parameters | Min. pouch size | 60x80mm | 70x130mm | 75x85mm |
| Max. pouch size | 130x180mm | 180x225mm | 240x225mm | |
| Filling volume | 160ml | 400ml | 1000ml | |
| Packaging speed | ≤60 | ≤60 | ≤50 | |
| Rollstock film thickness | 70-150u | 70-150u | 70-150u | |
| Max. rollstock film outer diameter | 500mm | 500mm | 500mm | |
| Machine specifications | Rollstock film core inner diameter | 70-80mm | 70-80mm | 70-80mm |
| Machine dimensions (L × W × H) | 2850x920x1460 | 3500x970x1450 | 4500x970x1460 | |
| Machine weight | 1500kg | 1800kg | 2100kg | |
| Operating conditions | Operating temperature | ﹣10℃-+50℃ | ﹣10℃-+50℃ | ﹣10℃-+50℃ |
| Operating humidity | Less than 85% | Less than 85% | Less than 85% | |
| Power supply | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | |
| Air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | |
| Air consumption | 200L/min | 200L/min | 300L/min | |
| Main drive power | 3.5kw | 5kw | 5.5kw |
Zipper opening
Pouch hole punching
Sombrero hole (butterfly hole)
Round hole
Special-shape punching
Arc hole / Curved slot hole
Euro hole
Coding options
Hot stamp coding
Inkjet printing
Laser marking
Sealing patterns
Grid pattern
Dotted pattern
Plain/flat pattern
Vertical rib pattern
A veterinary pharmaceutical producer in Malaysia added the 180N rollstock flat pouch packaging machine to their plant in 2024 for packing pouches with capacities that range from 40 g to 70 g. Since starting up, the rollstock flat pouch packaging machine has been running smoothly in daily production, and our client has been satisfied with both filling accuracy and overall performance.
-

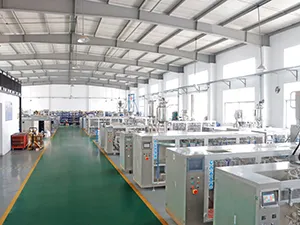

Factory overview -

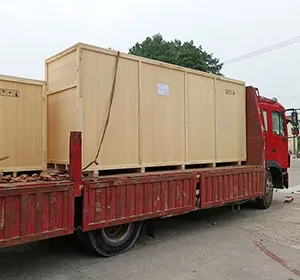

Shipping & delivery
