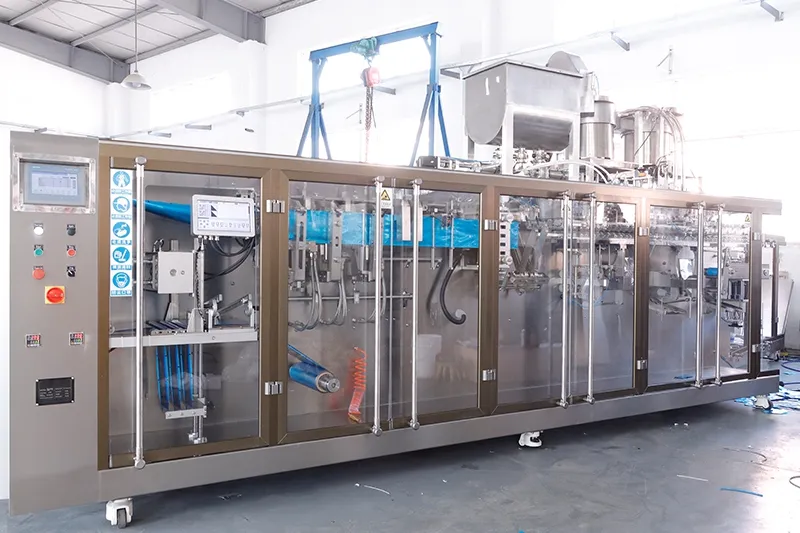

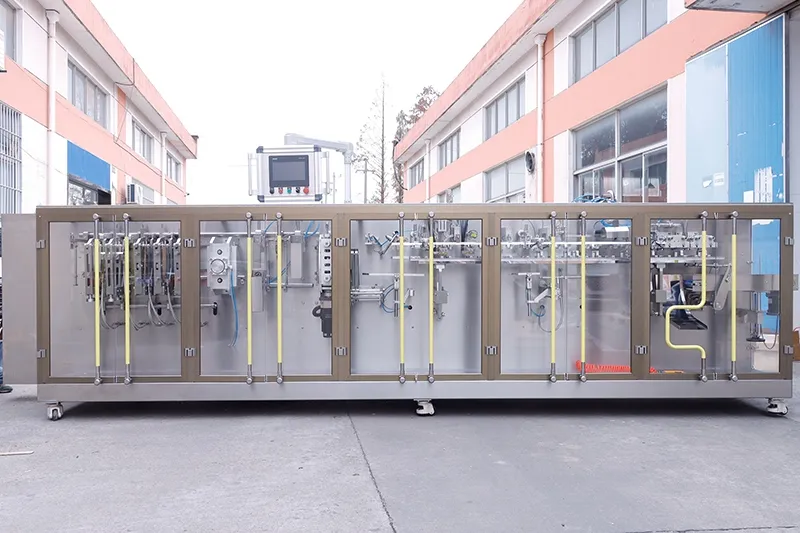

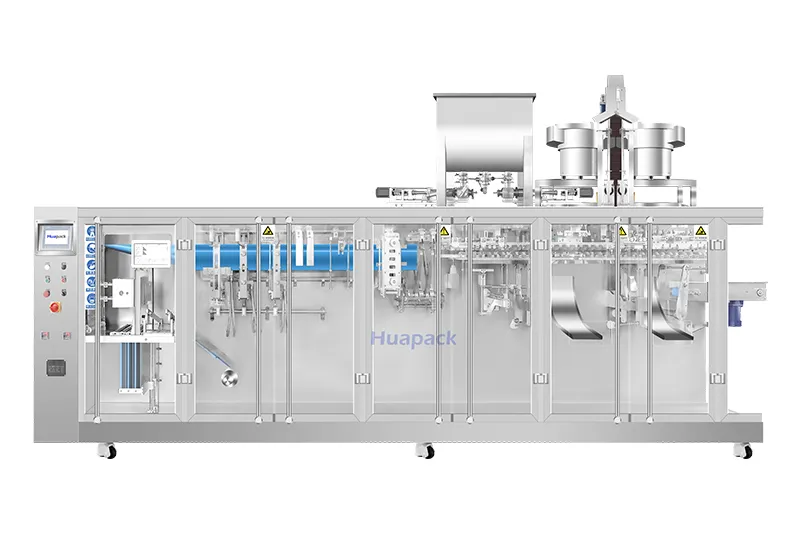

    Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling

    Horizontal form fill seal machine

    These dual-nozzle rollstock spouted pouch machines are built for higher output, delivering about twice the capacity of single-nozzle models, with a theoretical speed of up to 120 pouches per minute and around 100 pouches per minute in real production. They are ideal to pack products such as snack granules, pet food, powdered drinks, or detergent, especially when a tight seal and easy pouring through the spout are part of the product’s everyday use.

    Request a Quote

    Applications

    • Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling

    Supported Pouch Types

    • Shaped pouchesShaped pouches

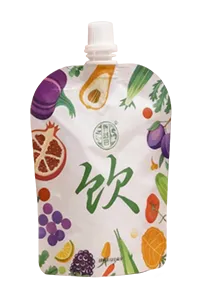

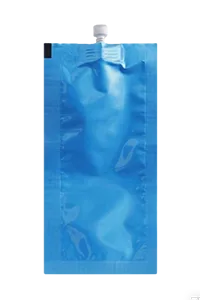

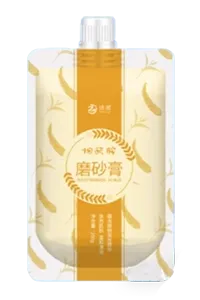

    • Spouted pouchesSpouted pouches

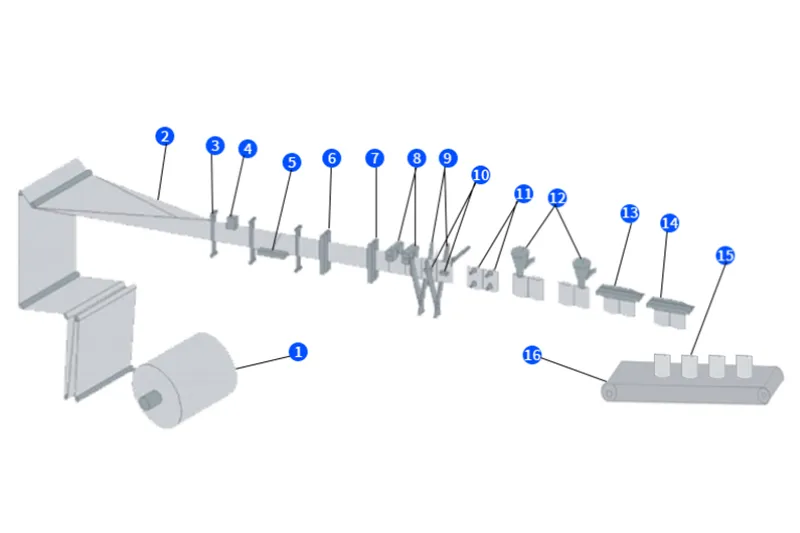

    Process Flow
    Process Flow
    • Film unwinding
    • Film alignment
    • Film forming
    • Easy-tear notch unit
    • Bottom sealing
    • Vertical sealing 1
    • Vertical sealing 2
    • Hanging hole punching
    • Cutting
    • Pouch gripping
    • Dual pouch opening
    • Filling
    • Heat sealing
    • Cooling sealing
    • Finished pouches
    • Finished pouch conveying
    Specifications
    Rollstock spouted pouch parameters 240NDP 280NDP 330NDP
    Pouch parameters Min. pouch size 70x90mm 70x120mm 90x140mm
    Max. pouch size 120x225mm 140x250mm 160x300mm
    Filling volume 150ml 200ml 400ml
    Packaging speed ≤120 ≤100 ≤90
    Rollstock film thickness 70-150u 70-150u 70-150u
    Max. rollstock film outer diameter 500mm 500mm 500mm
    Machine specifications Rollstock film core inner diameter 70-80mm 70-80mm 70-80mm
    Machine dimensions (L × W × H) 5200x970x1460 6500x970x1460 7200x970x1460
    Machine weight 2100kg 2200kg 2300kg
    Operating conditions Operating temperature ﹣10℃-+50℃ ﹣10℃-+50℃ ﹣10℃-+50℃
    Operating humidity Less than 85% Less than 85% Less than 85%
    Power supply AC380V, 50HZ AC380V, 50HZ AC380V, 50HZ
    Air pressure 0.6Mpa 0.6Mpa 0.6Mpa
    Air consumption 300L/min 300L/min 300L/min
    Main drive power 5.5kw 5.5kw 5.5kw
    Optional Functions

    Zipper opening

    • Zipper opening
    • Zipper opening

    Pouch hole punching

    • Sombrero hole (butterfly hole)Sombrero hole (butterfly hole)
    • Round holeRound hole
    • Special-shape punchingSpecial-shape punching
    • Arc hole / Curved slot holeArc hole / Curved slot hole
    • Euro holeEuro hole

    Coding options

    • Hot stamp codingHot stamp coding
    • Inkjet printingInkjet printing
    • Laser markingLaser marking

    Sealing patterns

    • Grid patternGrid pattern
    • Dotted patternDotted pattern
    • Plain/flat patternPlain/flat pattern
    • Vertical rib patternVertical rib pattern

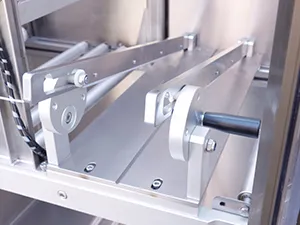

    Details
    • Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Customer Case Studies
    • Customer Case Studies
    Customer Case Studies

    Based in Shanxi, a pharmaceutical company purchased our rollstock spouted pouch packaging machine in 2025 and later placed additional orders. The pouch packaging equipment has shown stable performance in daily operation, and the positive feedback from their team reflects their satisfaction and continued trust in our pouch packaging solutions.
    • Factory overviewFactory overview

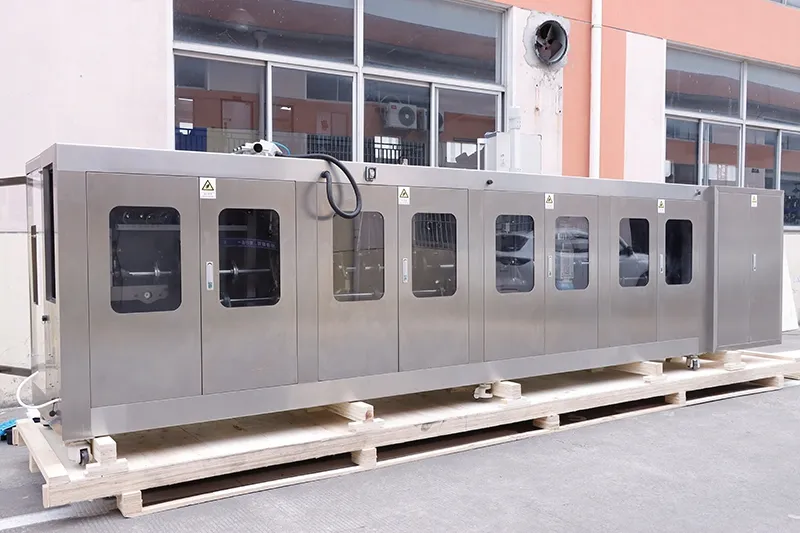

    • Shipping & deliveryShipping & delivery
    As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
    Rollstock Pouch Packaging Machine

    When combined with air flushing and degassing functions, the spouted pouch packaging machine helps pack both whole beans and ground coffee in a way that keeps them fresh for longer and protects aroma during storage and transport.
