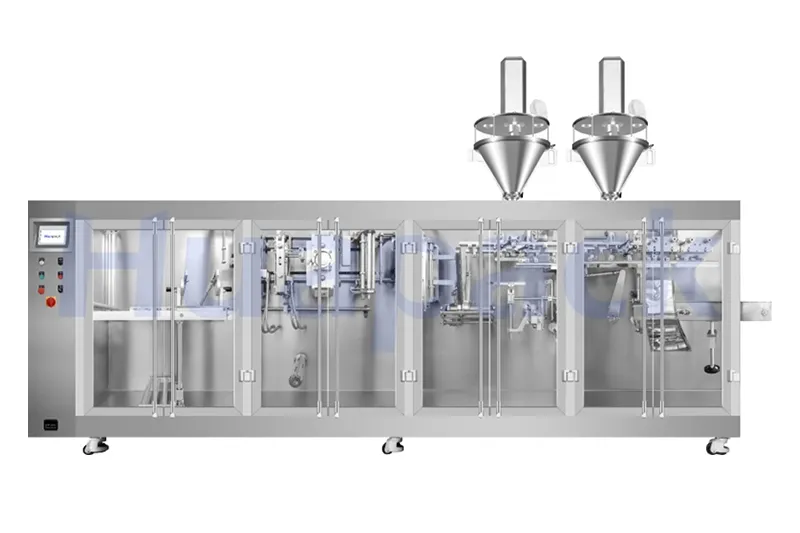

    Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling

    Horizontal form fill seal machine

    This rollstock zipper pouch machine is designed to make pouches with a reclosable zipper, handling everything from film forming to zipper feeding, filling, and sealing in one smooth process. The zipper is guided and welded in place with high stability, so it stays firmly bonded to the pouch and provides a tight seal that can be opened and closed many times. At the same time, accurate filling and optional vacuum or nitrogen flushing help protect the product and keep it fresh for longer on the shelf.

    Request a Quote

    Applications

    • Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling

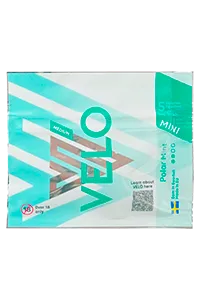

    Supported Pouch Types

    • Flat pouchesFlat pouches
    • Flat pouchesFlat pouches

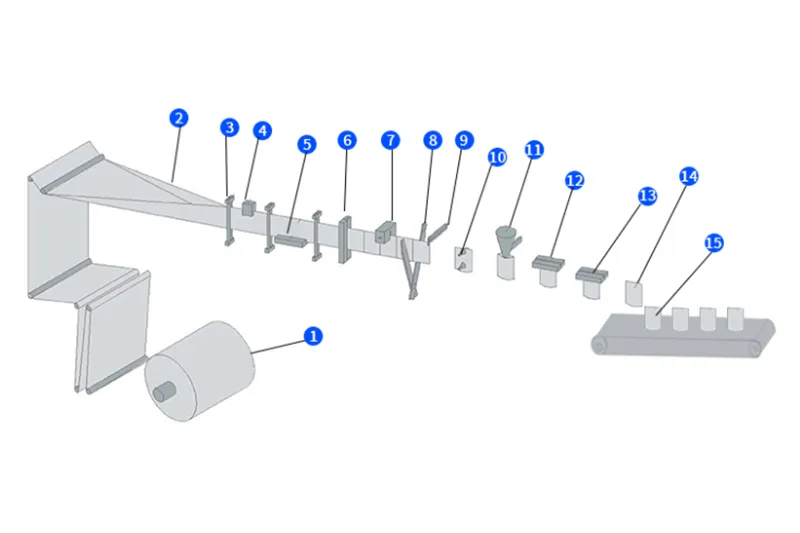

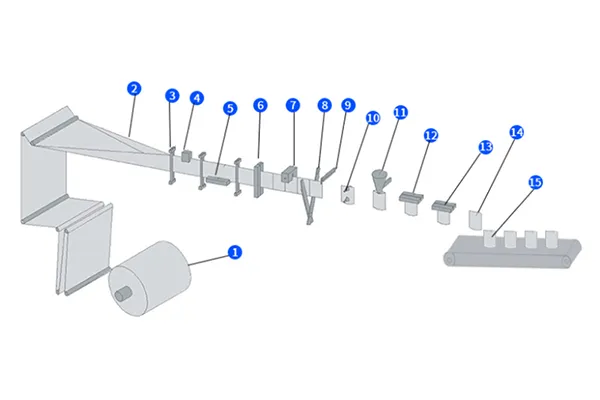

    Process Flow
    Process Flow
    • Film unwinding
    • Film alignment
    • Film forming
    • Easy-tear notch unit
    • Bottom sealing
    • Vertical sealing
    • Hanging hole punching
    • Cutting
    • Pouch gripping
    • Pouch opening
    • Filling
    • Heat sealing
    • Cooling sealing
    • Finished pouches
    • Finished pouch conveying
    Specifications
    Rollstock zipper pouch parameters 130NZ 180NZ 240NZ 280NZ
    Pouch parameters Min. pouch size (W × H) 60x80mm 75×85mm 75x85mm 70x85mm
    Max. pouch size (W × H) 130x180mm 180x225mm 240x225mm 280x225mm
    Max. filling volume 160ml 400ml 1000ml 1500ml
    Packaging speed (pouches/min) ≤60 ≤60 ≤50 ≤50
    Machine specifications Machine dimensions (L × W × H) 2850x920x1460mm 4000mm×970mm×1450mm 4500mmx970mmx1460mm 4800mmx970mmx1460mm
    Total machine weight 1500kg 1000kg 2100kg 2300kg
    Operating conditions Air consumption 200L/min 300L/min 300L/min 300L/min
    Main power 3.5kw 5.5Kw 5.5Kw 5.5Kw
    Optional Functions

    Zipper opening

    • Zipper opening
    • Zipper opening

    Pouch hole punching

    • Sombrero hole (butterfly hole)Sombrero hole (butterfly hole)
    • Round holeRound hole
    • Special-shape punchingSpecial-shape punching
    • Arc hole / Curved slot holeArc hole / Curved slot hole
    • Euro holeEuro hole

    Coding options

    • Hot stamp codingHot stamp coding
    • Inkjet printingInkjet printing
    • Laser markingLaser marking

    Sealing patterns

    • Grid patternGrid pattern
    • Dotted patternDotted pattern
    • Plain/flat patternPlain/flat pattern
    • Vertical rib patternVertical rib pattern

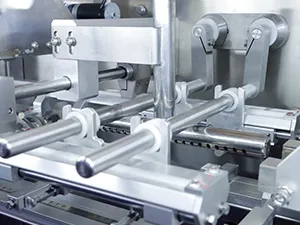

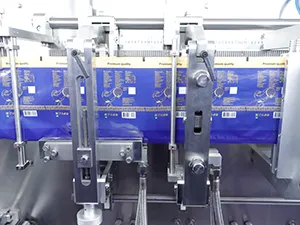

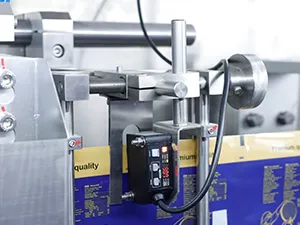

    Details
    • Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling
    • Customer Case Studies
    • Customer Case Studies
    Customer Case Studies

    A technology-focused machinery company based in Dongguan selected this rollstock packaging solution to enhance their operations. The rollstock zipper pouch packaging equipment has shown stable performance since start-up, with no post-installation issues reported. Ongoing technical exchanges with their team reflect both their satisfaction and their confidence in the line’s reliability.

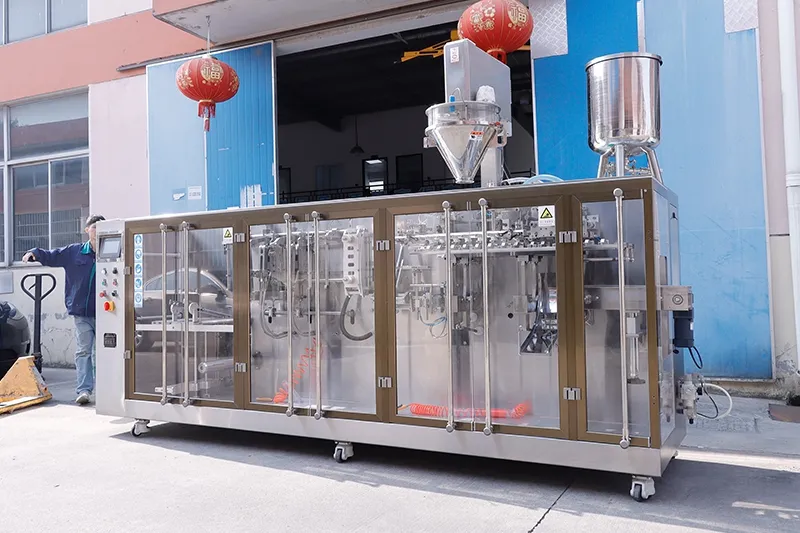

    • Factory overviewFactory overview

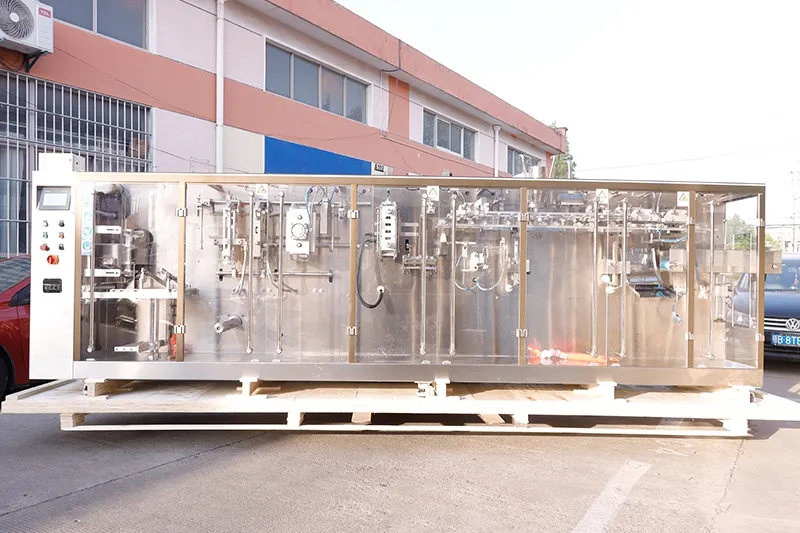

    • Shipping & deliveryShipping & delivery
    As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
    Rollstock Pouch Packaging Machine

    A precision auger combined with servo drive keeps powder feeding stable even at high speeds, helping maintain consistent fill weights from pouch to pouch.

    When equipped with auger dosing systems, rollstock packaging lines can feed, pack and seal powders such as spices and flour smoothly, ensuring stable flow, accurate dosing, and reliable sealing.
