    • 240NDZ/280NDZ/330NDZ

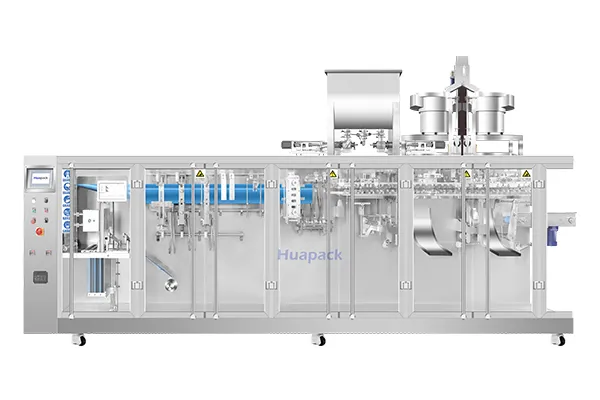

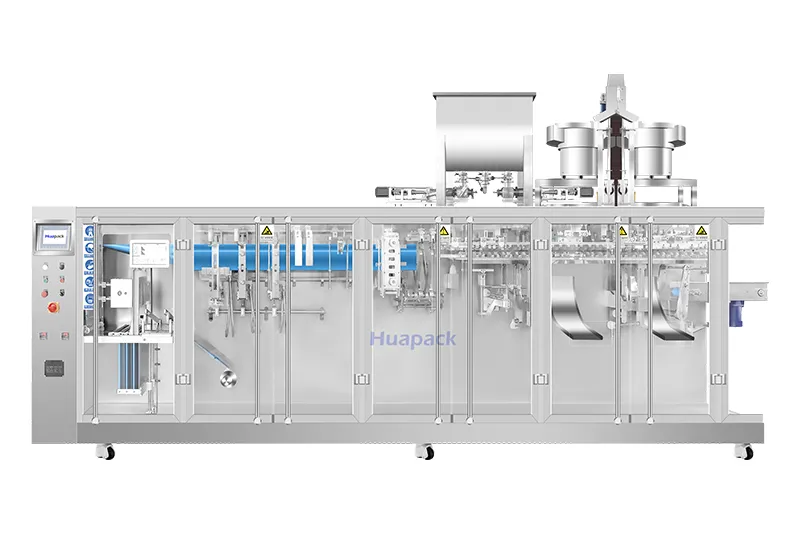

    Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling

    Horizontal form fill seal machine

    The dual-nozzle rollstock zipper pouch machines are used to produce flat pouches with a reclosable zipper through a fully automatic process. From roll film, the zipper pouch packaging system carries out film pulling, zipper pressing, bottom sealing, filling, top sealing, and final cutting in sequence, delivering individual zipper pouches with three-side or four-side seals, ready for packing and downstream handling.

    Request a Quote

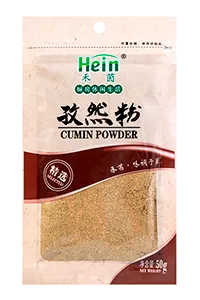

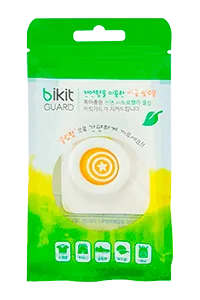

    Applications

    • Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling

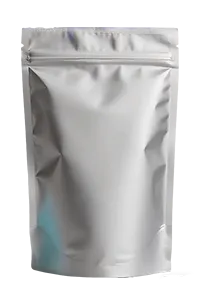

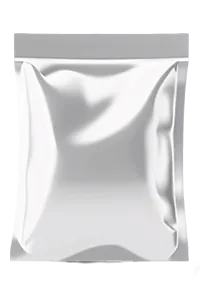

    Supported Pouch Types

    • Flat pouchesFlat pouches
    • Flat pouchesFlat pouches
    • Stand-up pouches (doypack)Stand-up pouches (doypack)
    • Stand-up pouches (doypack)Stand-up pouches (doypack)
    Process Flow
    Process Flow
    • Film unwinding
    • Film alignment
    • Film forming
    • Easy-tear notch unit
    • Bottom sealing
    • Vertical sealing 1
    • Vertical sealing 2
    • Hanging hole punching
    • Cutting
    • Pouch gripping
    • Dual pouch opening
    • Filling
    • Heat sealing
    • Cooling sealing
    • Finished pouches
    • Finished pouch conveying
    Specifications
    Performance features Rollstock flat pouch parameters 240NDZ 280NDZ 330NDZ
    Pouch parameters Min. pouch size 70x90mm 70x120mm 90x140mm
    Max. pouch size 120x225mm 140x250mm 160x300mm
    Filling volume 150ml 200ml 400ml
    Packaging speed ≤120 ≤100 ≤90
    Rollstock film thickness 70-150u 70-150u 70-150u
    Max. rollstock film outer diameter 500mm 500mm 500mm
    Machine specifications Rollstock film core inner diameter 70-80mm 70-80mm 70-80mm
    Machine dimensions (L × W × H) 5200x970x1460 6500x970x1460 7200x970x1460
    Machine weight 2100kg 2200kg 2300kg
    Operating conditions Operating temperature ﹣10℃-+50℃ ﹣10℃-+50℃ ﹣10℃-+50℃
    Operating humidity Less than 85% Less than 85% Less than 85%
    Power supply AC380V, 50HZ AC380V, 50HZ AC380V, 50HZ
    Air pressure 0.6Mpa 0.6Mpa 0.6Mpa
    Air consumption 300L/min 300L/min 300L/min
    Main drive power 5.5kw 5.5kw 5.5kw
    Optional Functions

    Zipper opening

    • Zipper opening
    • Zipper opening

    Pouch hole punching

    • Sombrero hole (butterfly hole)Sombrero hole (butterfly hole)
    • Round holeRound hole
    • Special-shape punchingSpecial-shape punching
    • Arc hole / Curved slot holeArc hole / Curved slot hole
    • Euro holeEuro hole

    Coding options

    • Hot stamp codingHot stamp coding
    • Inkjet printingInkjet printing
    • Laser markingLaser marking

    Sealing patterns

    • Grid patternGrid pattern
    • Dotted patternDotted pattern
    • Plain/flat patternPlain/flat pattern
    • Vertical rib patternVertical rib pattern

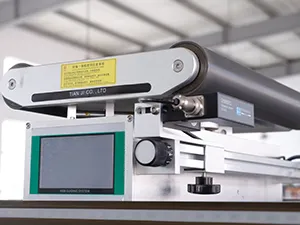

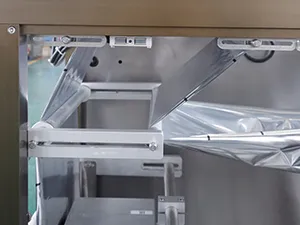

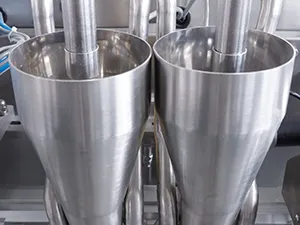

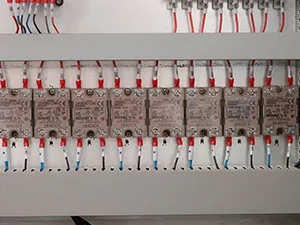

    Details
    • Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling
    • Customer Case Studies
    • Customer Case Studies
    Customer Case Studies

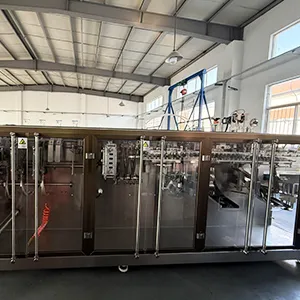

    Founded in 2000 and headquartered in Haimen, Nantong, this high-tech pharmaceutical company focuses on high-value active ingredients and provides one-stop CDMO/CMO services for global drug manufacturers. After installing our pouch packaging equipment in 2023, their team has reported smooth operation and very positive feedback, highlighting the line’s reliability in daily production.

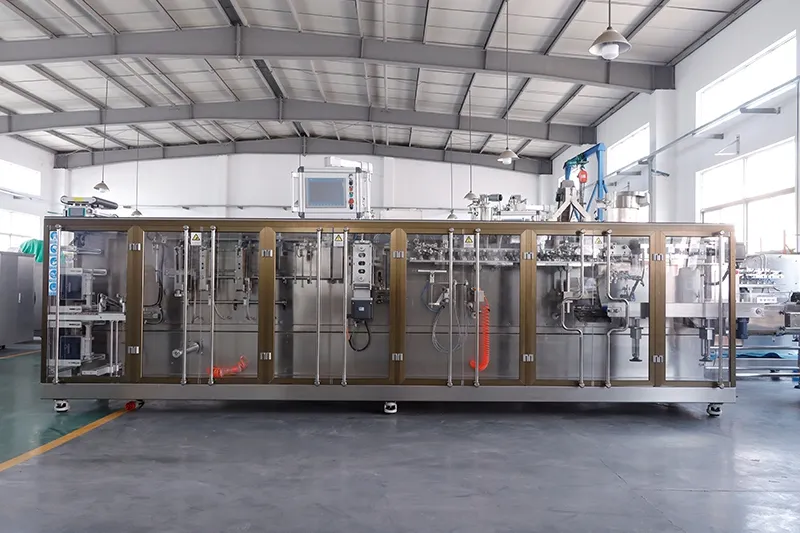

    • Factory overviewFactory overview

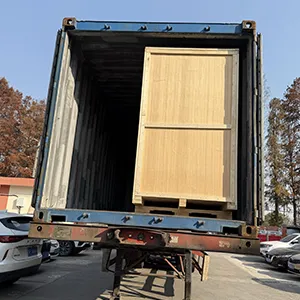

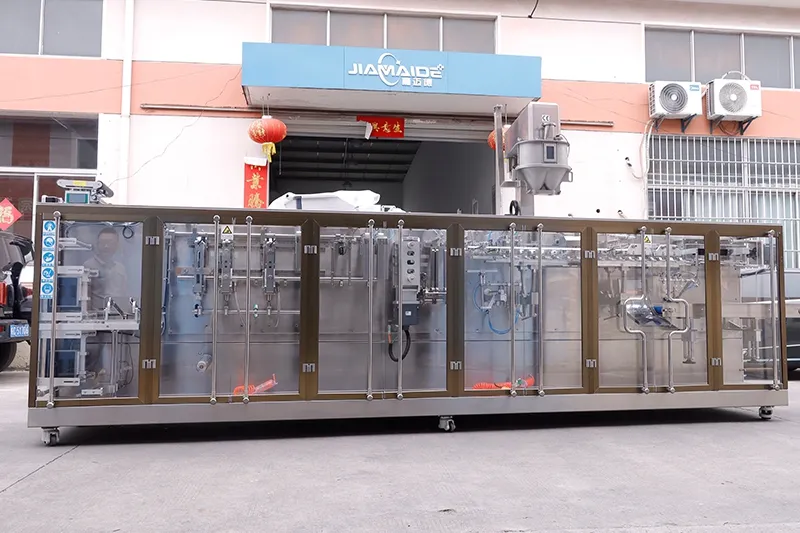

    • Shipping & deliveryShipping & delivery
    As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
    Rollstock Pouch Packaging Machine

    Some rollstock films can be sealed easily, while others need more precise temperature and pressure to seal properly. Choosing pouch materials that matche the product and the sealing conditions helps avoid weak seams, reduces the chance of leaks, and keeps the pouch looking and performing the way it should all the way to the customer.
