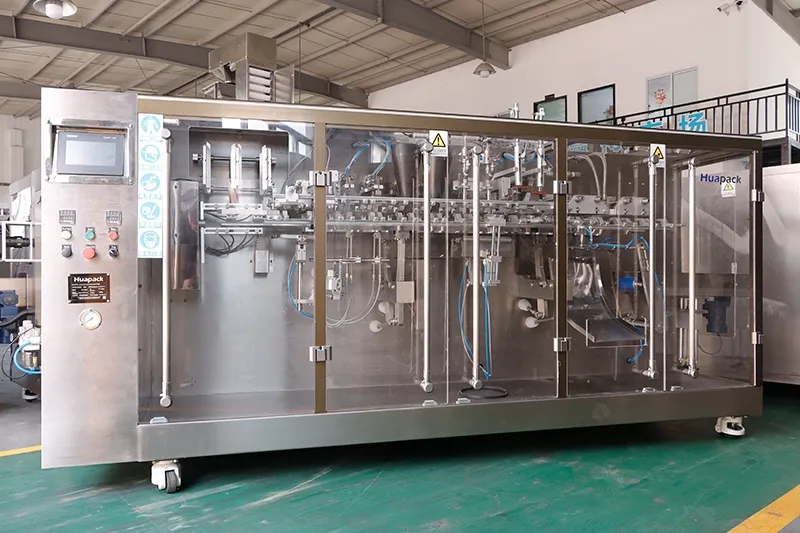

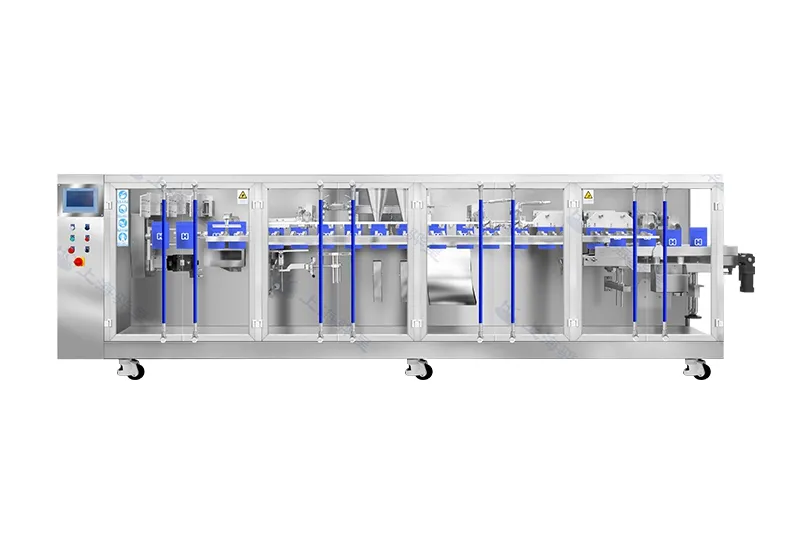

Servo Driven Premade Pouch Packaging Machine, 2-Nozzle Filling
The servo driven premade pouch packaging machine uses a full servo control system to manage every key step of the packaging process, including pouch picking, opening, filling, and sealing. Each motion is precisely coordinated, ensuring stable operation and consistent packaging quality throughout production.
This pouch handling equipment is suitable for applications where pouch appearance standards are high, materials vary in form, or secondary packaging processes are required. Servo-driven control allows accurate handling of complex products while maintaining clean pouch presentation and reliable sealing performance. It is widely used in industries that demand both visual quality and process flexibility.
Applications
Supported Pouch Types
Flat pouches
Flat pouches
Stand-up pouches (doypack)/Zipper pouches
Stand-up pouches (doypack)/Zipper pouches
- Dual pouch loading
- Dual pouch pick-up
- Dual pouch opening
- Dual air blowing (pouch opening air assist)
- Dual filling
- Dual pouch expanding
- Heat sealing
- Cooling sealing
- Finished pouch discharge
- Finished pouch conveying
- Two premade pouches are processed in parallel, from picking and opening to filling and sealing. When both lanes run in parallel, more pouches can be packed in the same amount of time, which makes it much easier to keep up with large orders and tight production schedules.
- By changing the feeding system, the same packaging line can work with different product types, including liquids, powders, and granules, allowing one setup to cover multiple applications.
- A wide variety of pouch styles can be handled smoothly, such as three-side seal, four-side seal, stand-up pouches, shaped pouches, and zipper pouches, giving more flexibility for different packaging designs.
- Equipped with a PLC-based control system to coordinate all main movements, keeping the packaging operation stable and ensuring continuous, well-synchronized production.
- The line can be connected with auxiliary equipment such as inkjet printers, checkweighers, cartoners, case packers, labeling machines, and palletizers, to make it easy to build a complete and automatic packaging line.
| Model | 330DG | |
| Packaging parameters | Min. pouch size (W × H) | 70×130mm |
| Max. pouch size (W × H) | 160×300mm | |
| Max. filling volume | 700ml | |
| Packing speed (pouches/min) | ≤80 | |
| Equipment specifications | Machine dimensions (L × W × H) | 3520mm×2600mm×1600mm |
| Total machine weight | 2000kg | |
| Operating conditions | Ambient temperature | -10℃-＋55℃ |
| Relative humidity (non-condensing) | <85% | |
| Power supply | AC380V, 50Hz | |
| Working air pressure | 0.6Mpa | |
| Air consumption | 560L/min | |
| Main motor power | 6Kw | |
Zipper opening
Pouch hole punching
Sombrero hole (butterfly hole)
Round hole
Special-shape punching
Arc hole / Curved slot hole
Euro hole
Coding options
Hot stamp coding
Inkjet printing
Laser marking
Sealing patterns
Grid pattern
Dotted pattern
Plain/flat pattern
Vertical rib pattern
Filling section
Pouch gripping section
Conveyor system
A food company in Pakistan purchased a 2-nozzle premade pouch packaging machine in 2025 to produce stand-up zipper pouches for gummy products in the 30 g to 100 g range.
-
