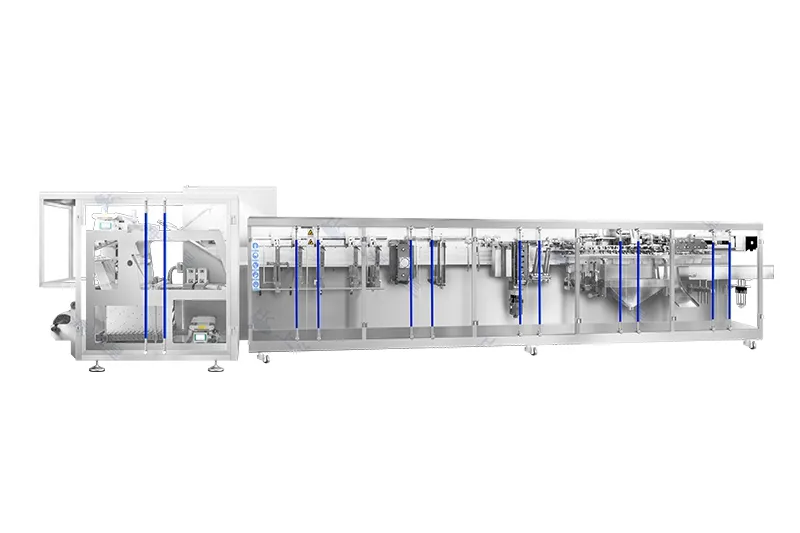

    Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling

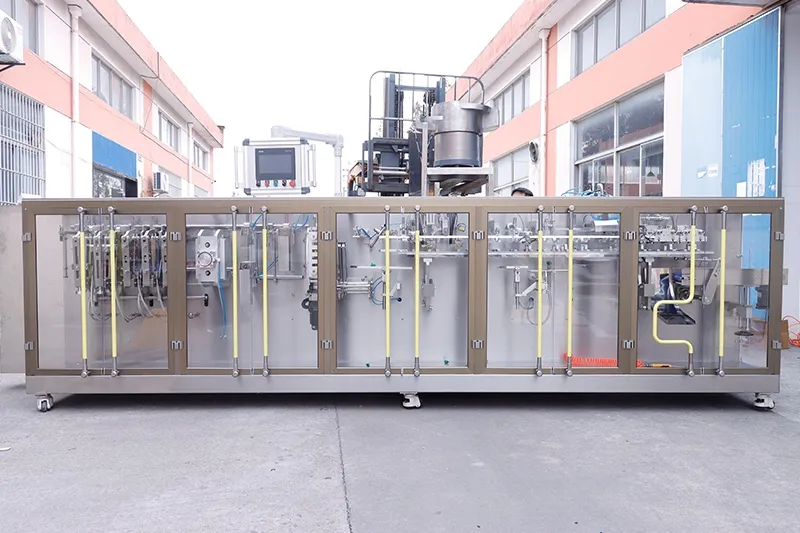

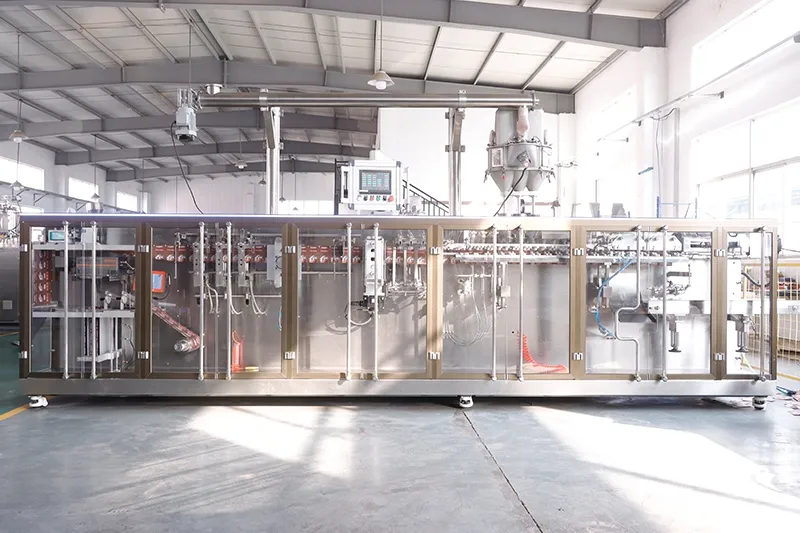

    The servo driven rollstock spouted pouch packaging machines combine a dual-lane filling configuration with online spout insertion and capping. Pouches are formed directly from roll film, filled, fitted with spouts, and sealed in one continuous process. It is designed for liquid and semi-liquid products that require easy pouring and re-closeable packaging. Servo-driven control keeps pouch forming, spout placement, and sealing stable, even as output increases. The result is a clean production flow with reliable pouch quality and efficient material use.

    Request a Quote

    Applications

    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling
    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling
    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling
    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling
    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling
    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling

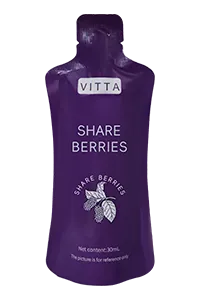

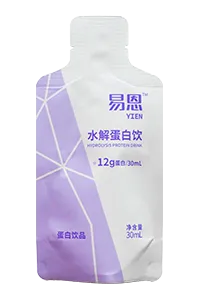

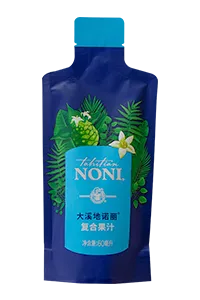

    Supported Pouch Types

    • Shaped pouchesShaped pouches

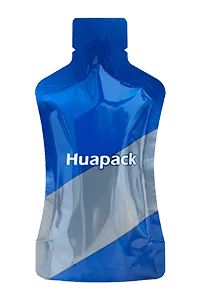

    • Spouted pouchesSpouted pouches

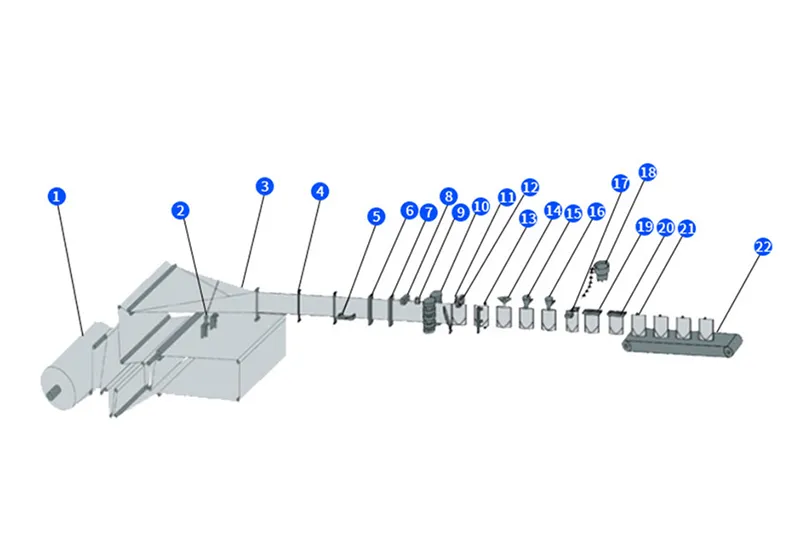

    Process Flow
    Process Flow
    • Film unwinding
    • Bottom hole punching
    • Film forming
    • Registration mark detection
    • Bottom sealing
    • First vertical sealing
    • Second vertical sealing
    • Easy-tear notch forming
    • Hole punching
    • Servo pouch pulling
    • Cutting

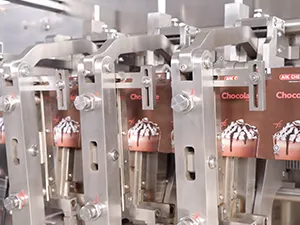

    • Pouch clamping
    • Pouch opening
    • Air blowing

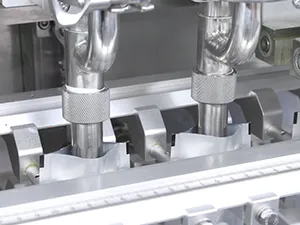

    • First filling
    • Secondary filling
    • Pouch expanding
    • Spout insertion
    • Heat sealing
    • Cooling sealing
    • Finished pouch discharge
    • Finished pouch conveying
    Specifications
    Performance features Rollstock stand-up pouch parameters 180SD/Z/P 240SD/Z/P 280SD/Z/P 330SD/Z/P
    Pouch parameters Min. pouch size 70x110mm 90x125mm 90x125mm 90x125mm
    Max. pouch size 90x225mm 120x250mm 140x250mm 165x250mm
    Filling volume 300ml 500ml 500ml 700ml
    Packaging speed 60-120 60-120 60-100 60-90
    Rollstock film thickness 70-150μ 70-150μ 70-150μ 70-150μ
    Max. rollstock film outer diameter 500mm 500mm 500mm 500mm
    Machine specifications Rollstock film core inner diameter 70-80mm 70-80mm 70-80mm 70-80mm
    Machine dimensions (L × W × H) 6900x970x1450 7200x970x1460 8500x1100x1460 9500x1100x1460
    Machine weight 2100kg 2500kg 2500kg 2500kg
    Operating conditions Operating temperature ﹣10℃-+50℃ ﹣10℃-+50℃ ﹣10℃-+50℃ ﹣10℃-+50℃
    Operating humidity Less than 85% Less than 85% Less than 85% Less than 85%
    Power supply AC380V, 50HZ AC380V, 50HZ AC380V, 50HZ AC380V, 50HZ
    Air pressure 0.6-0.7Mpa 0.6-0.7Mpa 0.6-0.7Mpa 0.6-0.7Mpa
    Air consumption 400L/min 400L/min 400L/min 400L/min
    Main drive power 8.8kw 9.8kw 12.8kw 15.8kw
    Optional Functions

    Zipper opening

    • Zipper opening
    • Zipper opening

    Pouch hole punching

    • Sombrero hole (butterfly hole)Sombrero hole (butterfly hole)
    • Round holeRound hole
    • Special-shape punchingSpecial-shape punching
    • Arc hole / Curved slot holeArc hole / Curved slot hole
    • Euro holeEuro hole

    Coding options

    • Hot stamp codingHot stamp coding

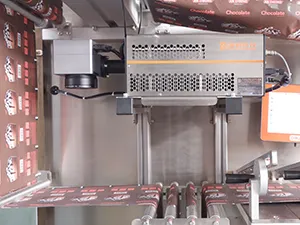

    • Inkjet printingInkjet printing
    • Laser markingLaser marking

    Sealing patterns

    • Grid patternGrid pattern
    • Dotted patternDotted pattern
    • Plain/flat patternPlain/flat pattern
    • Vertical rib patternVertical rib pattern

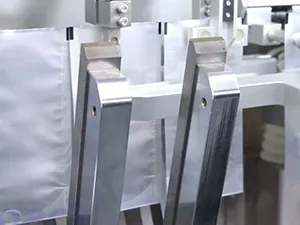

    Details
    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling
    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling
    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling
    • Servo Driven Rollstock Spouted Pouch Packaging Machine, 2-Nozzle Filling
    • Customer Case Studies
    • Customer Case Studies
    Customer Case Studies

    For their ketchup products, a food company supplying the Yemen and Saudi markets chose a rollstock stand-up pouch machine with straight spout to pack ketchup in small pouches with a capacity of 50–70 g. The pouch packaging machine our client purchased was ideal for the products they wanted to handle, and it has been running smoothly, delivering consistent fills and neat spout sealing in daily production.

    • Factory overviewFactory overview
    • Shipping & deliveryShipping & delivery
    As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
    Servo Driven Pouch Packaging Machine

    Rollstock packaging systems offer room to scale. Output can be increased by changing dosing units or adding functional modules, allowing capacity to grow without replacing the entire machine.
